ncxconst.h File Reference

Contains NCX constants. More...

#include <math.h>
#include <xmlstring.h>
Include dependency graph for ncxconst.h:

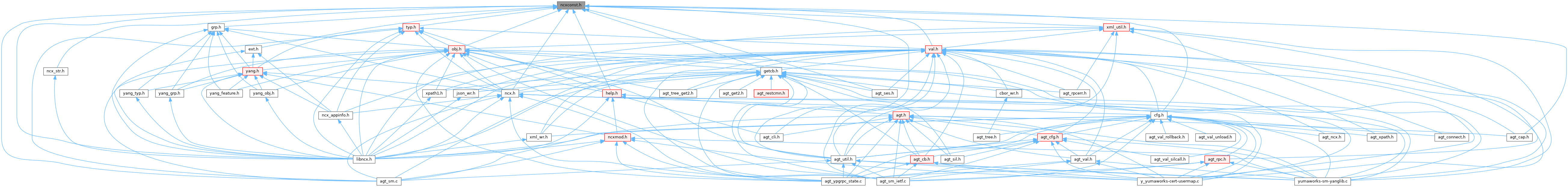

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define NC_VER   "1.0"
 NETCONF Base URN Version.

#define NC_MODULE   (const xmlChar *)"yuma-netconf"
 Internal NETCONF YANG module.

#define NCN_MODULE   (const xmlChar *)"notifications"
 Internal notifications module from RFC 5277 RPC create-subscription notification header eventTime [sequence-id].

#define NCN2_MODULE   (const xmlChar *)"nc-notifications"
 Internal notifications 2nd module from RFC 5277 container /netconf container streams.

#define NEW_NCN_MODULE   (const xmlChar *)"ietf-subscribed-notifications"
 RFC 8639 YANG module establish-subscription container subscriptions.

#define PUSH_MODULE   (const xmlChar *)"ietf-yang-push"
 RFC 8641 YANG module augment NEW_NCN_MODULE.

#define NCX_MODULE   (const xmlChar *)"yuma-ncx"
 Internal Yuma Extensions module.

#define YANGAPI_MODULE   (const xmlChar *)"yumaworks-yang-api"
 Obsolete YANG-API module.

#define NCXSERVER_SOCKNAME   "/tmp/ncxserver.sock"
 Default ncx-connect socket is AFLOCAL.

#define NCXSERVER_FHS_SOCKNAME   "/var/run/netconfd-pro/ncxserver.sock"
 Default ncx-connect socket when fileloc-fhs=true.

#define NCXSERVER_SRID_SOCKNAME   "/tmp/ncxserver.%s.sock"
 Multi-instance server mode uses server root ID in the socket name.

#define NCXSERVER_SRID_FHS_SOCKNAME   "/var/run/netconfd-pro/ncxserver.%s.sock"
 when fileloc-fhs=true Multi-instance server mode uses server root ID in the socket name

#define NACM_PREFIX   (const xmlChar *)"nacm"
 source of secure and very-secure extensions!

#define NC_OK_REPLY   (const xmlChar *)"RpcOkReplyType"
 Schema element name for an OK reply.

#define NC_URN   (const xmlChar *)"urn:ietf:params:xml:ns:netconf:base:1.0"
 NETCONF namespace used for base:10 and base:1.1.

#define NC_SSH_END   "]]>]]>"
 NETCONF SSH End of Message Marker.

#define NC_SSH_END_LEN   6
 Length of NETCONF SSH End of Message Marker.

#define NC_SSH_END_CHUNKS   "\n##\n"
 NETCONF SSH End of Chunks Marker.

#define NC_SSH_END_CHUNKS_LEN   4
 Length of NETCONF SSH End of Chunks Marker.

#define NC_OWNER   (const xmlChar *)"ietf"
 NETCONF Module Owner.

#define NC_OPERATION_ATTR_NAME   (const xmlChar *)"operation"
 NETCONF edit-config operation attribute name.

#define NC_RPC_REPLY_TYPE   (const xmlChar *)"rpc-reply"
 RPC Reply ELement Name.

#define NCX_SSH_PORT   22
 Default SSH port.

#define NCX_NCSSH_PORT   830
 Default NETCONF over SSH port.

#define INVALID_URN   (const xmlChar *)"INVALID"
 name used for invalid namespace

#define WILDCARD_URN   (const xmlChar *)""
 base:1.1 subtree wildcard URN

#define NCX_MAX_NUMLEN   47
 max number len to use for static buffer allocation only

#define NCX_MAX_LOAD_CALLBACKS   8
 max number of moule load event callbacks

#define NCX_MAX_YANG_OBJ_CALLBACKS   4
 max number of YANG object callbacks

#define NCX_MAX_NLEN   0x7ffffff
 all name fields in YANG can be 1 to N bytes set a limit based on likely malloc failure CHANGE TO MATCH NCX_MAX_STRLEN REAL MAX NAME LENGTH in 64 SO THIS LIMIT NOT APPLIED

#define NCX_MAX_NCXNAME_LEN   64
 matches name length restriction in NcxName and NcxNumName

#define NCX_MAX_USERNAME_LEN   127
 NCX User Name max length.

#define NCX_MAX_GETBULK_COUNT   64
 size of the val_getbulk_array_t in val_util.h

#define NCX_MAX_LIMIT_GETBULK   512
 max limit –max-getbulk count

#define NCX_DEF_GETBULK_MAX   10
 default –max-getbulk value

#define NCX_SERVER_TRANSPORT   "ssh"
 yumaserver server transport for SSH sessions

#define NCX_SERVER_TRANSPORT_LOCAL   "local"
 ncxserver server transport for local connections

#define NCX_SERVER_TRANSPORT_HTTP   "netconf-http"
 ncxserver server transport for Yuma HTTP/REST-API connections

#define NCX_SERVER_TRANSPORT_CLI   "netconf-cli"
 ncxserver server transport for Yuma CLI connections

#define NCX_SERVER_TRANSPORT_WEBUI   "netconf-webui"
 ncxserver server transport for Yuma WEBui connections

#define NCX_SERVER_TRANSPORT_AFLOCAL   "netconf-aflocal"
 ncxserver server transport for local system connections

#define NCX_SERVER_TRANSPORT_TCP_NCX   "netconf-tcp-ncx"
 ncxserver server transport for local system connections

#define NCX_SERVER_VERSION   1
 ncxserver version

#define NC_URN1   (const xmlChar *)"urn:netconf:params:xml:ns:"
 URN for NETCONF standard modules.

#define NC_WD_ATTR_URN
 URN for with-defaults 'default' XML attribute.

#define NC_WD_ATTR_PREFIX   (const xmlChar *)"wda"
 with-defaults default prefix

#define NCX_URN   (const xmlChar *)"http://netconfcentral.org/ns/yuma-ncx"
 URN for NCX extensions.

#define NCX_MOD   (const xmlChar *)"yuma-ncx"
 NCX extensions module.

#define XSD_URN   (const xmlChar *)"http://www.w3.org/2001/XMLSchema"
 URN for XSD.

#define XSD_PREFIX   (const xmlChar *)"xs"
 prefix for XSD URN

#define XSI_URN
 URN for XSI.

#define XSI_PREFIX   (const xmlChar *)"xsi"
 prefix for XSI

#define XML_URN
 URN for XML.

#define XML_PREFIX   (const xmlChar *)"xml"
 prefix for XML

#define NCN_URN
 URN for NETCONF Notifications.

#define NCN_PREFIX   (const xmlChar *)"ncn"
 prefix for notifications

#define YWATTRS_URN   (const xmlChar *)"http://yumaworks.com/ns/yumaworks-attrs"
 URN for YumaWorks XML Attributes.

#define ORIGIN_URN   (const xmlChar *)"urn:ietf:params:xml:ns:yang:ietf-origin"
 URN for ietf-origin module.

#define NCX_SCHEMA_LOC   (const xmlChar *)"http://www.netconfcentral.org/xsd/"
 schemaLocation string

#define NCX_XSD_EXT   (const xmlChar *)"xsd"
 prefix for XSD

#define NCX_URNP1   (const xmlChar *)"http://"
 default start of URI for RESTCONF

#define NCX_PREFIX   (const xmlChar *)"ncx"
 default prefix to use for NCX namespace

#define NCX_PREFIX_LEN   3
 Length of default prefix to use for NCX namespace.

#define YWX_PREFIX   (const xmlChar *)"ywx"
 default prefix to use for YumaWorks Extensions namespace

#define YWX_PREFIX_LEN   3
 Length of default prefix to use for YumaWorks Extensions namespace.

#define OC_EXT_PREFIX   (const xmlChar *)"oc-ext"
 default prefix to use for OpenConfig Extensions namespace

#define OC_EXT_PREFIX_LEN   6
 Length of default prefix to use for OpenConfig Extensions namespace.

#define YANGMNT_PREFIX   (const xmlChar *)"yangmnt"
 default prefix to use for Schema Mount namespace

#define YANGMNT_PREFIX_LEN   7
 Length of default prefix to use for Schema Mount namespace.

#define NS_PREFIX   (const xmlChar *)"namespace"
 default prefix for the xmlns namespace (not really used)

#define NS_PREFIX_LEN   9
 Length of default prefix for the xmlns namespace (not really used.

#define NS_URN   (const xmlChar *)"http://www.w3.org/2000/xmlns/"
 XML Namespace URN.

#define NCX_XML_URN   (const xmlChar *)"http://www.w3.org/XML/1998/namespace"
 needed for xml:lang attribute

#define NCX_XML_SLOC
 needed for internal XML

#define SMI_PREFIX   (const xmlChar *)"smi"
 default prefix to SMI V1 Extention namespace. More...

#define SMIV2_PREFIX   (const xmlChar *)"smiv2"
 default prefix to SMI V2 Extention namespace, ietf-yang-smiv2.yang

#define YW_CONFIG_ID_URN
 yumaworks config-id capability base string

#define EMPTY_STRING   (const xmlChar *)""
 empty string used to get const xmlChar * cast

#define NCX_DEF_MODULE   (const xmlChar *)"yuma-netconf"
 Internal default module for NETCONF.

#define NCX_DEF_LANG   (const xmlChar *)"en"
 Default language for error messages.

#define MAX_LANG_TAGLEN   7
 Max length of language tag accepted.

#define NCX_DEF_MERGETYPE   NCX_MERGE_LAST
 NETCONF default insert type.

#define NCX_DEF_FRACTION_DIGITS   2
 YANG default fraction-digits.

#define NCX_DEF_LINELEN   72
 yangdump default line length

#define NCX_MAX_LINELEN   4095
 Internal buffer max line length.

#define NCX_DEF_WARN_IDLEN   64
 warning identifier length

#define NCX_DEF_WARN_LINELEN   0
 default warning linelen value

#define NCX_DEF_ENCODING   NCX_DISPLAY_MODE_XML
 default encoding

#define NCX_DEF_SUBSYS_INFO_FILE    (const xmlChar *)"/tmp/netconfd-pro-subsys-info.txt"
 subsystem info file

#define NCX_SRID_SUBSYS_INFO_FILE    (const xmlChar *)"/tmp/netconfd-pro-subsys-info.%s.txt"
 subsystem info file with SRID field

#define NCX_DEF_SERVER_ROOT_MAP_FILE    "/etc/yumapro/server-root-map.txt"
 server root map file

#define NCX_DEF_SOCKET_ADDRESS   (const xmlChar *)"0.0.0.0"
 default –socket-address

#define NCX_DEF_SOURCE_ADDRESS   (const xmlChar *)"127.0.0.1"
 default source address

#define NCX_DEF_TCP_PORT   2023
 port number for NETCONF over TCP

#define NCX_DEF_HTTPS_PORT   443
 port number for HTTPS

#define NCX_DEF_HTTP_PORT   80
 port number for HTTP

#define NCX_DEF_COAP_PORT   5683
 port number for RESTCONF over CoAP

#define NCX_DEF_SSH_CALLHOME   4334
 port number for NETCONF CallHome for SSH

#define NCX_DEF_TLS_CALLHOME   4335
 port number for NETCONF CallHome for TLS

#define NCX_DEF_RESTCONF_TLS_CALLHOME   4336
 port number for RESTCONF CallHome for TLS

#define NCX_DEF_NETCONF_TLS_PORT   6513
 port assignment for netconf-tls in RFC 7589

#define NCX_DEF_TRUST_STORE   "$HOME/.ssl/trust-store.pem"
 default ssl-trust-store value

#define NCX_DEF_TRUST_DIR   "/etc/ssl/certs"
 Default SSL certificates directory.

#define NCX_MIN_MAX_STRLEN   65536
 support max-strlen parameter for server; other programs use the default only

#define NCX_MAX_MAX_STRLEN   INT_MAX
 max string length

#define NCX_DEF_MAX_STRLEN   262144
 default max strlen

#define NCX_CONF_SUFFIX   (const xmlChar *)"conf"
 etc config file suffix

#define NCX_COMMENT_CH   '#'
 start of comment token in all NCX text

#define NCX_SCOPE_CH   '/'
 scoped identifier field separator token

#define NCX_PATHSEP_CH   '/'
 filespec identifier field separator token

#define NCX_MODSCOPE_CH   ':'
 prefix scoped identifier field separator token

#define NCX_QSTRING_CH   '"'
 start of a double quoted string in NCX text

#define NCX_SQSTRING_CH   '\''
 start of a single quoted string in NCX text

#define NCX_VARBIND_CH   '$'
 start of an NCX or XPath varbind

#define NCX_IS_HEX_CH(c)   ((c)=='x' || (c)=='X')
 Standard 0x0 syntax to indicate a HEX number is specified.

#define NCX_MAX_HEXCHAR   16
 max hex digits in the value part of a hex number

#define NCX_ATTR_PER_LINE   3
 max attributes that will be printed per line

#define NCX_MAX_DCHAR   20
 max decimal digits in a plain int

#define NCX_MAX_RCHAR   255
 max digits in a real number

#define NCX_MAX_STRLEN   0x7fffffff
 Maximum string length (2^^31 - 1)

#define NCX_DEF_FILPTR_CACHESIZE   300
 max number of cached ncx_filptr_t records

#define NCX_DEF_INDENT   2
 default indent amount for nesting XML or other structured output

#define NCX_DEF_MSG_INDENT   0
 default indent amount for protocol message output

#define NCX_DEF_VTIMEOUT   1
 default virtual value cache timeout value in seconds use 0 to disable the cache and refresh a virtual value every time is is retrieved (2 second default) Default value was 2 seconds! now set to 1

#define NCX_DEF_STARTUP_TXID_FILE   (const xmlChar *)"startup-cfg-txid.txt"
 Default startup config transaction ID file name.

#define NCX_DEF_STARTUP_FILE   (const xmlChar *)"startup-cfg.xml"
 Default startup config data file name.

#define NCX_DEF_BACKUP_FILE   (const xmlChar *)"backup-cfg.xml"
 Default backup config data file name.

#define NCX_DEF_CONFIRM_TIMEOUT   600
 default conrm-tmieout value in seconds

#define NCX_DEF_WITHDEF   NCX_WITHDEF_EXPLICIT
 default value for the with-defaults option

#define NCX_DEF_WITHMETA   FALSE
 default value for the with-metadata option

#define NCX_DEF_SUPERUSER   NCX_EL_SUPERUSER
 default value for the agent superuser

#define NCX_DEF_COAP_USER   (const xmlChar *)"coap"
 default value for the agent CoAP user

#define NCX_DEF_SNMP_USER   (const xmlChar *)"snmp"
 default value for the agent SNMP user

#define NCX_STR_START   (xmlChar)'"'
 String start char: if the XML string starts with a double quote then it will be interpreted as whitespace-allowed.

#define NCX_ENU_START   (xmlChar)'('
 Enumeration number start and end chars.

#define NCX_PSTYP_CLI   (const xmlChar *)"cli"
 String names matching psd_pstype_t enums.

#define NCX_USER_SIL_PREFIX   (const xmlChar *)"u_"
 file name prefix to use for split SIL files

#define NCX_MIN_INT   INT_MIN
 Min and max int.

#define NCX_MAX_LONG   9223372036854775807LL
 Min and max long.

#define NCX_MIN_UINT   0
 Min and max uint.

#define NCX_MIN_ULONG   0
 Min and max uint64.

#define NCX_MIN_FLOAT   "-inf"
 Min and max float.

#define NCX_MIN_DOUBLE   "-inf"
 Min and max double.

#define NCX_CFG_RUNNING   (const xmlChar *)"running"
 NETCONF built-in config names.

#define NCX_CFG_ROLLBACK   (const xmlChar *)"rollback"
 NCX Extension configuration names.

#define ALL_SERVICES   (const xmlChar *)"*"
 YControl string for event to the YControl layer itself.

#define NCX_EL_DASHDASH   (const xmlChar *)"--"
 NCX and NETCONF element and attribute names. More...

#define NCX_EL_AGT_ACCESS_CONTROL   (const xmlChar *)"agt_accesscontrol"
 <agt-profile> message name strings

#define NCX_FL_RANGE_ERR   bit0
 bit definitions for ncx_lstr_t flags field

#define NCX_FL_PROTO_NETCONF10   bit0
 bit definitions for NETCONF session protocol versions

#define NCX_FL_MOD_DONE   bit0
 bit definitions for the ncx_module_t 32-bit flags field

#define NCX_FL_FEAT_SET   bit0
 bit definitions for the feature_flags uint8 field that is coupled with an iffeatureQ of ncx_iffeature_t structs

#define NCX_SAVESTR   TRUE
 textual parameter tags for various NCX functions that use boolean parameters

#define ISGLOBAL   TRUE
 constants for isglobal function parameter

#define E_BAD_DATA_IGNORE   (const xmlChar *)"ignore"
 bad-data enumeration values

#define E_BAD_REPLY_ADAPT   (const xmlChar *)"adapt"
 handle-bad-reply enumeration values

#define COPYRIGHT_STRING    "Copyright (c) 2008-2012, Andy Bierman, All Rights Reserved.\n"
 This constant must not change.

#define COPYRIGHT_STRING2    "Copyright (c) 2012-2024, YumaWorks, Inc., All Rights Reserved.\n"
 this constant must be updated each January

#define NCX_INLINE_TAG   "\"\"\""
 start/end inline XML or JSON data

#define WILDCARD_STRING   (const xmlChar *)"_***_"
 yangcli test-suite allows wildcards in leafy nodes using the wildcar string

#define NCX_CA_CHAIN_DEPTH   9
 YPW-2266 CA CHAIN DEPTH.


Detailed Description

Contains NCX constants.
