Schema Mount Core Functions

Schema Mount Core Functions. More...

Collaboration diagram for Schema Mount Core Functions:

Functions
void	sm_init (void)
	Initialize Schema Mount handler. More...
void	sm_cleanup (void)
	Cleanup Schema Mount handler. More...
void	sm_dump_rootcb (ncx_sm_rootcb_t *rootcb)
	Print the interesting fields in Root Control block Must be debug for some info, debug4 for full info. More...
void	sm_show_rootcb (ncx_sm_rootcb_t *rootcb)
	Print the interesting fields in Root Control block for yangcli report capabilities. More...
void	sm_dump_all_rootcb (void)
	Print the interesting fields in all rootcbs. More...
ncx_module_t *	sm_find_module (ncx_sm_rootcb_t *rootcb, const xmlChar *modname, const xmlChar *revision)
	Find an ncx_module_t in the rootcb->modQ. More...
ncx_module_t *	sm_find_deviation (ncx_sm_rootcb_t *rootcb, const xmlChar *modname, const xmlChar *revision)
	Find an ncx_module_t in the rootcb->devQ;. More...
ncx_module_t *	sm_find_module_allroots (const xmlChar *modname, const xmlChar *revision, boolean withdev)
	Find an ncx_module_t in the any rootcb. More...
obj_template_t *	sm_find_any_object (ncx_sm_rootcb_t *rootcb, const xmlChar *objname)
	Check if an obj_template_t is in any module that matches the object name string. More...
obj_template_t *	sm_first_mounted_obj (ncx_sm_rootcb_t *rootcb, boolean augment_ok)
	Find the first data node. More...
obj_template_t *	sm_next_mounted_obj (obj_template_t *curobj, boolean augment_ok)
	Find the next data node. More...
obj_template_t *	sm_last_mounted_obj (ncx_sm_rootcb_t *rootcb, boolean augment_ok)
	Find the first data node. More...
obj_template_t *	sm_prev_mounted_obj (obj_template_t *curobj, boolean augment_ok)
	Find the previous data node. More...
obj_template_t *	sm_find_child_obj (obj_template_t *obj, const xmlChar *modname, const xmlChar *objname, ncx_name_match_t match_names, boolean alt_names, boolean dataonly, status_t *retres)
	Find the previous data node. More...
void	sm_setup_cur_rootcb (ncx_sm_rootcb_t *rootcb)
	setup NCX library to use the rootCB for schema mount More...
void	sm_init_yanglib_cb (ncx_yanglib_cb_t *cb)
	Init a YANG Library control block struct. More...
void	sm_clean_yanglib_cb (ncx_yanglib_cb_t *cb)
	Clean a YANG Library control block struct. More...
void	sm_register_yanglib_cbfn (sm_yanglib_cbfn_t cbfn)
	register a yanglib_cb setup callback More...
ncx_sm_mpid_t *	sm_new_mpid (void)
	Malloc and initialize an MPID struct. More...
void	sm_free_mpid (ncx_sm_mpid_t *mpid)
	free a malloced Mount Point ID control block More...
status_t	sm_setup_mpid (xml_msg_hdr_t *msg, val_value_t *val, obj_template_t *obj)
	Set Up ancestor keys and yanglib for the current MPI. More...
void	sm_dump_mpid (const ncx_sm_mpid_t *mpid)
	Dump the contents of a MPID struct if DEBUG. More...
ncx_sm_mpid_t *	sm_clone_mpid (const ncx_sm_mpid_t *mpid, val_value_t *valroot)
	Clone an existing MPID. More...
ncx_sm_mpid_t *	sm_get_mpid_from_msg (rpc_msg_t *msg)
	Get the MPID struct from the message header if set. More...
status_t	sm_find_mpidval_from_input (val_value_t *chval, val_value_t **mpidval)
	Get the MPID value node from the parsed val_value_t tree prepresenting the ancestors of the action or SM RPC method. More...
val_value_t *	sm_get_mpi_valroot (val_value_t *val)
	Get the current value root value. More...
ncx_sm_mpid_t *	sm_get_ancestor_mpid (val_value_t *val)
	Get the MPID for the specified mounted node. More...
status_t	sm_patch_notif_keyQ (const ncx_sm_mpid_t *mpid, dlq_hdr_t *keyQ)
	Patch the keyQ for a notification to prepend the SM ancestor keys to the queue. More...
ncx_sm_mpid_t *	sm_get_first_mpid (ncx_sm_rootcb_t *rootcb)
	Get the first MPID struct in the rootcb. More...
ncx_sm_mpid_t *	sm_get_next_mpid (ncx_sm_mpid_t *curmpid)
	Get the next MPID struct in the rootcb. More...
status_t	sm_activate_mpid (ncx_sm_rootcb_t *rootcb, ncx_sm_mpid_t *mpid)
	Setup a new MPID. More...
ncx_sm_rootcb_t *	sm_search_rootcbs (dlq_hdr_t *searchQ, sm_rootcb_searchfn_t searchfn, void *cookie)
	search all the rootcbs in the specified queue More...
ncx_sm_rootcb_t *	sm_save_rootcb (obj_template_t *obj, const xmlChar *label)
	Set the with_schema_mount value. More...
ncx_sm_rootcb_t *	sm_find_rootcb (const xmlChar *label, const xmlChar *modname)
	Find a Mount Point Control Block Entry in the rootcbQ. More...
void	sm_free_rootcb (ncx_sm_rootcb_t *rootcb)
	Free a ncx_sm_rootcb_t Control Block record. More...
ncx_module_t *	sm_get_first_module (ncx_sm_rootcb_t *rootcb)
	Get first module from Root Control Block. More...
ncx_module_t *	sm_get_last_module (ncx_sm_rootcb_t *rootcb)
	Get the last module from Root Control Block. More...
void	sm_clear_all_rootcbs (dlq_hdr_t *saveQ)
	Retrieve all the rootcb entries or clear the rootcbQ. More...
ncx_sm_mpid_t *	sm_val_to_mpid (val_value_t *mpidval, boolean preserve, status_t *res)
	Convert a "mpid" YANG container to an MPID value. More...
val_value_t *	sm_mpid_to_val (ncx_sm_mpid_t *mpid, obj_template_t *mpidobj, boolean preserve, status_t *res)
	Convert a "mpid" struct to a YANG container. More...
val_value_t *	sm_get_first_anckey (const ncx_sm_mpid_t *mpid)
	Get first ancestor key from the MPID. More...
val_value_t *	sm_get_next_anckey (const val_value_t *curkey)
	Get next ancestor key from the MPID. More...
ncx_sm_rootcb_t *	sm_get_rootcb_for_mpid (ncx_sm_mpid_t *mpid)
	Get the rootcb for an MPID. More...
uint32	sm_mod_revision_count (xml_msg_hdr_t *msg, ncx_sm_rootcb_t *rootcb, const xmlChar *modname)
	get the module revision count for one rootcb More...
uint32	sm_mod_revision_count_allroots (xml_msg_hdr_t *msg, const xmlChar *modname)
	get the module revision count for all rootcbs More...
status_t	sm_setup_yanglib (ncx_sm_rootcb_t *rootcb)
	Setup the YANG library early because the get-sm-yanglib operation is enabled. More...

Detailed Description

Schema Mount Core Functions.

Function Documentation

sm_activate_mpid()

status_t sm_activate_mpid	(	ncx_sm_rootcb_t *	rootcb,
		ncx_sm_mpid_t *	mpid
	)

Setup a new MPID.

• YANG Library instance for an MPID valroot
• add to rootcb

Parameters

rootcb	root control block to use
mpid	MPID to setup the valroot with the rootcb yanglib

Returns

status

Here is the call graph for this function:

sm_clean_yanglib_cb()

void sm_clean_yanglib_cb

(

ncx_yanglib_cb_t *

cb

)

Clean a YANG Library control block struct.

Parameters

cb	yanglib control block to clean

Here is the call graph for this function:

Here is the caller graph for this function:

sm_cleanup()

void sm_cleanup

(

void

)

Cleanup Schema Mount handler.

Here is the caller graph for this function:

sm_clear_all_rootcbs()

void sm_clear_all_rootcbs

(

dlq_hdr_t *

saveQ

)

Retrieve all the rootcb entries or clear the rootcbQ.

Used only by yangcli to get the rootcbs while loading the top-level modules or clearing the queue for next use

Parameters

[out]

saveQ

queue header to retrieve all the entries in the rootcbQ if NULL then any rootcbs will just be deleted Else saveQ filled with any rootcb entries (if not NULL)

Here is the call graph for this function:

Here is the caller graph for this function:

sm_clone_mpid()

ncx_sm_mpid_t * sm_clone_mpid	(	const ncx_sm_mpid_t *	mpid,
		val_value_t *	valroot
	)

Clone an existing MPID.

Parameters

mpid	Mount Point ID control block to clone
valroot	value node getting this MPID may be NULL back pointer to the valroot not malloced pointer

Returns

clone of mpid must be freed with sm_free_mpid

Here is the call graph for this function:

Here is the caller graph for this function:

sm_dump_all_rootcb()

void sm_dump_all_rootcb

(

void

)

Print the interesting fields in all rootcbs.

Here is the call graph for this function:

Here is the caller graph for this function:

sm_dump_mpid()

void sm_dump_mpid

(

const ncx_sm_mpid_t *

mpid

)

Dump the contents of a MPID struct if DEBUG.

This is an external API that can be used in SIL code

Non-const needed for val_dump_value; not modified

Parameters

mpid	Mount Point ID control block to dump

Here is the call graph for this function:

Here is the caller graph for this function:

sm_dump_rootcb()

void sm_dump_rootcb

(

ncx_sm_rootcb_t *

rootcb

)

Print the interesting fields in Root Control block Must be debug for some info, debug4 for full info.

–log-level=debug or higher

Parameters

rootcb

Root Control Block to output

Here is the caller graph for this function:

sm_find_any_object()

obj_template_t * sm_find_any_object	(	ncx_sm_rootcb_t *	rootcb,
		const xmlChar *	objname
	)

Check if an obj_template_t is in any module that matches the object name string.

Parameters

rootcb	control block to print
objname	object name to match

Returns

object pointer if present, NULL otherwise

Here is the call graph for this function:

sm_find_child_obj()

obj_template_t * sm_find_child_obj	(	obj_template_t *	obj,
		const xmlChar *	modname,
		const xmlChar *	objname,
		ncx_name_match_t	match_names,
		boolean	alt_names,
		boolean	dataonly,
		status_t *	retres
	)

Find the previous data node.

Check if an obj_template_t in in any module that matches a data node

Parameters

obj	obj_template_t to check
modname	module name that defines the obj_template_t == NULL and first match will be done, and the module ignored (Name instead of QName)
objname	object name to find
match_names	enum for selected match names mode alt_names == TRUE if alt-name should be checked in addition to the YANG node name == FALSE to check YANG names only
alt_names	TRUE if alt-name should be checked
dataonly	TRUE to check just data nodes FALSE to check all nodes
retres	address of return status

Returns

pointer to struct if present, NULL otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

sm_find_deviation()

ncx_module_t * sm_find_deviation	(	ncx_sm_rootcb_t *	rootcb,
		const xmlChar *	modname,
		const xmlChar *	revision
	)

Find an ncx_module_t in the rootcb->devQ;.

rootcb->devQ These are the deviation modules that are already loaded into Mount Point

Parameters

rootcb	control block to use
modname	module name
revision	module revision date

Returns

module pointer if found or NULL if not

Here is the call graph for this function:

sm_find_module()

ncx_module_t * sm_find_module	(	ncx_sm_rootcb_t *	rootcb,
		const xmlChar *	modname,
		const xmlChar *	revision
	)

Find an ncx_module_t in the rootcb->modQ.

rootcb->modQ These are the modules that are already loaded into Mount Point

Parameters

rootcb	control block to use
modname	module name
revision	module revision date

Returns

module pointer if found or NULL if not

Here is the call graph for this function:

Here is the caller graph for this function:

sm_find_module_allroots()

ncx_module_t * sm_find_module_allroots	(	const xmlChar *	modname,
		const xmlChar *	revision,
		boolean	withdev
	)

Find an ncx_module_t in the any rootcb.

Will return the first match or NULL if no match. Used by YANG Library get-schema operation

Parameters

modname	module name
revision	module revision date
withdev	TRUE to check deviation modules as well

Returns

module pointer if found or NULL if not

sm_find_mpidval_from_input()

status_t sm_find_mpidval_from_input	(	val_value_t *	chval,
		val_value_t **	mpidval
	)

Get the MPID value node from the parsed val_value_t tree prepresenting the ancestors of the action or SM RPC method.

Parameters

	chval	child value within the mount point this is expected to be the action value node from the parsed input message but that is not required.
[out]	mpidval	address of return MPID value node *mpidval return MPID value node

Returns

status

Here is the call graph for this function:

sm_find_rootcb()

ncx_sm_rootcb_t * sm_find_rootcb	(	const xmlChar *	label,
		const xmlChar *	modname
	)

Find a Mount Point Control Block Entry in the rootcbQ.

Parameters

label	label name to match
modname	module name to match

Returns

Mount Point Control Block Entry if found or NULL if not

Here is the call graph for this function:

Here is the caller graph for this function:

sm_first_mounted_obj()

obj_template_t * sm_first_mounted_obj	(	ncx_sm_rootcb_t *	rootcb,
		boolean	augment_ok
	)

Find the first data node.

Check if an obj_template_t in in any module that matches a data node

Parameters

rootcb	control block to use
augment_ok	TRUE to include augment objects

Returns

pointer to struct if present, NULL otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

sm_free_mpid()

void sm_free_mpid

(

ncx_sm_mpid_t *

mpid

)

free a malloced Mount Point ID control block

Parameters

mpid	Mount Point ID control block to free

Here is the call graph for this function:

Here is the caller graph for this function:

sm_free_rootcb()

void sm_free_rootcb

(

ncx_sm_rootcb_t *

rootcb

)

Free a ncx_sm_rootcb_t Control Block record.

Parameters

rootcb

Mount Point Control Block to free

Here is the call graph for this function:

Here is the caller graph for this function:

sm_get_ancestor_mpid()

ncx_sm_mpid_t * sm_get_ancestor_mpid

(

val_value_t *

val

)

Get the MPID for the specified mounted node.

This is an API for SIL or SIL-SA callback code

Parameters

val	value to check

Returns

back-ptr to the MPID fot the MP ancestor or NULL if none or some error

Here is the call graph for this function:

sm_get_first_anckey()

val_value_t * sm_get_first_anckey

(

const ncx_sm_mpid_t *

mpid

)

Get first ancestor key from the MPID.

Parameters

mpid	Mount Point Instance Descriptor to use

Returns

pointer to the first entry or NULL if empty Q

Here is the caller graph for this function:

sm_get_first_module()

ncx_module_t * sm_get_first_module

(

ncx_sm_rootcb_t *

rootcb

)

Get first module from Root Control Block.

Parameters

rootcb

Mount Point Control Block to use

Returns

pointer to the first entry or NULL if empty Q

Here is the caller graph for this function:

sm_get_first_mpid()

ncx_sm_mpid_t * sm_get_first_mpid

(

ncx_sm_rootcb_t *

rootcb

)

Get the first MPID struct in the rootcb.

Parameters

rootcb

root control block to check

Returns

pointer to first MPID or NULL if none

Here is the call graph for this function:

sm_get_last_module()

ncx_module_t * sm_get_last_module

(

ncx_sm_rootcb_t *

rootcb

)

Get the last module from Root Control Block.

Parameters

rootcb

Mount Point Control Block to use

Returns

pointer to the last entry or NULL if empty Q

Here is the caller graph for this function:

sm_get_mpi_valroot()

val_value_t * sm_get_mpi_valroot

(

val_value_t *

val

)

Get the current value root value.

Get the back-ptr to the Mount Point root value

Parameters

val	value to check

Returns

back-ptr to the Mount Point root value

Here is the call graph for this function:

Here is the caller graph for this function:

sm_get_mpid_from_msg()

ncx_sm_mpid_t * sm_get_mpid_from_msg

(

rpc_msg_t *

msg

)

Get the MPID struct from the message header if set.

This field is set by the server during RPC or action processing so SIL code in schema mounted modules can identify which mount point instance is being used by the client

Parameters

msg	RPC msg message header to check

Returns

pointer to the MPID struct if any set

sm_get_next_anckey()

val_value_t * sm_get_next_anckey

(

const val_value_t *

curkey

)

Get next ancestor key from the MPID.

Parameters

curkey

current kley entry

Returns

pointer to the next entry or NULL if none

Here is the caller graph for this function:

sm_get_next_mpid()

ncx_sm_mpid_t * sm_get_next_mpid

(

ncx_sm_mpid_t *

curmpid

)

Get the next MPID struct in the rootcb.

Parameters

curmpid

current MPID to get next for

Returns

pointer to next MPID or NULL if none

Here is the call graph for this function:

sm_get_rootcb_for_mpid()

ncx_sm_rootcb_t * sm_get_rootcb_for_mpid

(

ncx_sm_mpid_t *

mpid

)

Get the rootcb for an MPID.

Should work on SIL. May not work on SIL-SA

Parameters

mpid	MPID to check

Returns

pointer to the rootcb or NULL if cannot be accessed

sm_init()

void sm_init

(

void

)

Initialize Schema Mount handler.

Here is the caller graph for this function:

sm_init_yanglib_cb()

void sm_init_yanglib_cb

(

ncx_yanglib_cb_t *

cb

)

Init a YANG Library control block struct.

Parameters

cb	yanglib control block to init

sm_last_mounted_obj()

obj_template_t * sm_last_mounted_obj	(	ncx_sm_rootcb_t *	rootcb,
		boolean	augment_ok
	)

Find the first data node.

Check if an obj_template_t in in any module that matches a data node

Parameters

rootcb	control block to use
augment_ok	TRUE to include augment objects

Returns

pointer to struct if present, NULL otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

sm_mod_revision_count()

uint32 sm_mod_revision_count	(	xml_msg_hdr_t *	msg,
		ncx_sm_rootcb_t *	rootcb,
		const xmlChar *	modname
	)

get the module revision count for one rootcb

Support for YANG library get-schema operation

Parameters

msg	xml_msg_hdr_t to use
rootcb	root control block to check
modname	module name to count all revisions

Returns

count of modules that have this name (exact match)

Here is the call graph for this function:

Here is the caller graph for this function:

sm_mod_revision_count_allroots()

uint32 sm_mod_revision_count_allroots	(	xml_msg_hdr_t *	msg,
		const xmlChar *	modname
	)

get the module revision count for all rootcbs

Support for YANG library get-schema operation

Parameters

msg	xml_msg_hdr_t to use
modname	module name to count all revisions

Returns

count of modules that have this name (exact match)

Here is the call graph for this function:

sm_mpid_to_val()

val_value_t * sm_mpid_to_val	(	ncx_sm_mpid_t *	mpid,
		obj_template_t *	mpidobj,
		boolean	preserve,
		status_t *	res
	)

Convert a "mpid" struct to a YANG container.

Definition is in yumaworks-sil-sa.yang 'mpid-parm' grouping

    +--rw mpid
          |        |  +--rw module?    string
          |        |  +--rw label?     string
          |        |  +--rw objpath?   string
          |        |  +--rw keys?      <anyxml>

Parameters

	mpid	struct to convert
	mpidobj	object template for return value
	preserve	TRUE to steal fields from mpid; FALSE to preserve mpid
[out]	res	address of return status *res return status

Returns

malloced val_value_t struct; free with val_free_value

Here is the call graph for this function:

Here is the caller graph for this function:

sm_new_mpid()

ncx_sm_mpid_t * sm_new_mpid

(

void

)

Malloc and initialize an MPID struct.

Returns

mpid Mount Point ID control block.
Must use sm_free_mpid to clean up.

Here is the call graph for this function:

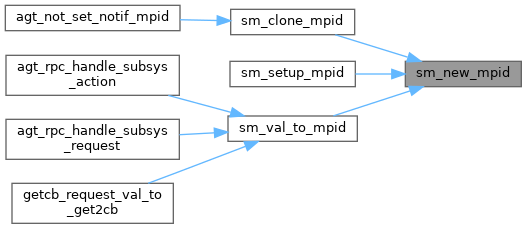

Here is the caller graph for this function:

sm_next_mounted_obj()

obj_template_t * sm_next_mounted_obj	(	obj_template_t *	curobj,
		boolean	augment_ok
	)

Find the next data node.

Check if an obj_template_t in in any module that matches a data node

Parameters

curobj	node to find next from
augment_ok	TRUE to include augment objects

Returns

pointer to struct if present, NULL otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

sm_patch_notif_keyQ()

status_t sm_patch_notif_keyQ	(	const ncx_sm_mpid_t *	mpid,
		dlq_hdr_t *	keyQ
	)

Patch the keyQ for a notification to prepend the SM ancestor keys to the queue.

Parameters

mpid	MPID to use for ancestor keys
keyQ	queue of val_value_t will have ancestor keys prepended to it. They are cloned so val_free_value is required for all added entries to this queue

Returns

status

Here is the call graph for this function:

sm_prev_mounted_obj()

obj_template_t * sm_prev_mounted_obj	(	obj_template_t *	curobj,
		boolean	augment_ok
	)

Find the previous data node.

Check if an obj_template_t in in any module that matches a data node

Parameters

curobj	node to find previous from
augment_ok	TRUE to include augment objects

Returns

pointer to struct if present, NULL otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

sm_register_yanglib_cbfn()

void sm_register_yanglib_cbfn

(

sm_yanglib_cbfn_t

cbfn

)

register a yanglib_cb setup callback

Parameters

cbfn	callback function to register

sm_save_rootcb()

ncx_sm_rootcb_t * sm_save_rootcb	(	obj_template_t *	obj,
		const xmlChar *	label
	)

Set the with_schema_mount value.

Save Mount Point Control Block Entry into rootcbQ for lookup

Parameters

obj	object template to use
label	label name of the Mount Point

Here is the call graph for this function:

Here is the caller graph for this function:

sm_search_rootcbs()

ncx_sm_rootcb_t * sm_search_rootcbs	(	dlq_hdr_t *	searchQ,
		sm_rootcb_searchfn_t	searchfn,
		void *	cookie
	)

search all the rootcbs in the specified queue

Parameters

searchQ	Q of ncx_sm_rootcb_t to search NULL to use the top-levvel rootcbQ
searchfn	callback to invoke for the search
cookie	pointer to pass to the callback function

Returns

pointer to 'found' entry'
NULL if no entry flagged as found

Here is the call graph for this function:

sm_setup_cur_rootcb()

void sm_setup_cur_rootcb

(

ncx_sm_rootcb_t *

rootcb

)

setup NCX library to use the rootCB for schema mount

Parameters

rootcb

schema mount root control block NULL for top level

Here is the call graph for this function:

Here is the caller graph for this function:

sm_setup_mpid()

status_t sm_setup_mpid	(	xml_msg_hdr_t *	msg,
		val_value_t *	val,
		obj_template_t *	obj
	)

Set Up ancestor keys and yanglib for the current MPI.

Parameters

msg	XML message header in progress
val	current MP value to use
obj	current MP object to use

Returns

status

Here is the call graph for this function:

sm_setup_yanglib()

status_t sm_setup_yanglib

(

ncx_sm_rootcb_t *

rootcb

)

Setup the YANG library early because the get-sm-yanglib operation is enabled.

Parameters

rootcb

Mount Point to setup YANG library

Returns

status

Here is the caller graph for this function:

sm_show_rootcb()

void sm_show_rootcb

(

ncx_sm_rootcb_t *

rootcb

)

Print the interesting fields in Root Control block for yangcli report capabilities.

–log-level=info or higher

Parameters

rootcb

Root Control Block to output

sm_val_to_mpid()

ncx_sm_mpid_t * sm_val_to_mpid	(	val_value_t *	mpidval,
		boolean	preserve,
		status_t *	res
	)

Convert a "mpid" YANG container to an MPID value.

Definition is in yumaworks-sil-sa.yang 'mpid-parm' grouping

    +--rw mpid
          |        |  +--rw module?    string
          |        |  +--rw label?     string
          |        |  +--rw objpath?   string
          |        |  +--rw keys?      <anydata>

Parameters

	mpidval	value node for message 'mpid' container to convert
	preserve	TRUE to steal fields from mpidval; FALSE to preserve mpidval
[out]	res	address of return status *res return status

Returns

malloced ncx_sm_mpid_t struct (free with sm_free_mpid)

Here is the call graph for this function:

Here is the caller graph for this function:
