XML Write Utilities. More...

Collaboration diagram for XML Utilities:

Data Structures
struct	xml_attr_t
	represents one attribute More...

struct	xml_node_t
	gather node data into a simple struct. More...

Typedefs
typedef dlq_hdr_t	xml_attrs_t
	queue of xml_attr_t

Enumerations
enum	xml_nodetyp_t { XML_NT_NONE , XML_NT_EMPTY , XML_NT_START , XML_NT_END , XML_NT_STRING }
	only 4 types of nodes returned More...

Functions
boolean	wr_util_check_start_depth (xml_msg_hdr_t msg, obj_template_t obj)
	Check if the current val value for All in One mode is the value that we should start the write for. More...

boolean	wr_util_fit_on_line (ses_cb_t scb, const val_value_t val)
	Check if the specified value will fit on the current line or if a newline is needed first. More...

boolean	wr_util_need_default_attr (xml_msg_hdr_t *msg)
	Check if the default attr is needed. More...

boolean	wr_util_need_origin_attr (xml_msg_hdr_t *msg)
	Check if the origin attr is needed. More...

boolean	wr_util_need_skip_any (val_value_t *out)
	Check if the output data is really an anyxml or anydata or a generic container. More...

xml_node_t *	xml_new_node (void)
	Malloc and init a new xml_node_t struct. More...

void	xml_init_node (xml_node_t *node)
	Init an xml_node_t struct. More...

void	xml_free_node (xml_node_t *node)
	Free an xml_node_t struct. More...

void	xml_clean_node (xml_node_t *node)
	Clean an xml_node_t struct. More...

status_t	xml_get_reader_from_buff (const xmlChar buff, xmlTextReaderPtr reader)
	Get a new xmlTextReader for parsing a debug test file. More...

status_t	xml_get_reader_from_filespec (const char filespec, xmlTextReaderPtr reader)
	Get a new xmlTextReader for parsing a debug test file. More...

status_t	xml_get_reader_for_session (xmlInputReadCallback readfn, xmlInputCloseCallback closefn, void context, xmlTextReaderPtr reader)
	Get a new xmlTextReader for parsing the input of a NETCONF session. More...

status_t	xml_reset_reader_for_session (xmlInputReadCallback readfn, xmlInputCloseCallback closefn, void *context, xmlTextReaderPtr reader)
	Reset the xmlTextReader for parsing the input of a NETCONF session. More...

void	xml_free_reader (xmlTextReaderPtr reader)
	Free the previously allocated xmlTextReader. More...

const char *	xml_get_node_name (int nodeval)
	get the node type according to the xmlElementType enum list in /usr/include/libxml/libxml/tree.h More...

boolean	xml_advance_reader (xmlTextReaderPtr reader)
	Advance to the next node in the specified reader. More...

status_t	xml_node_match (const xml_node_t node, xmlns_id_t nsid, const xmlChar elname, xml_nodetyp_t nodetyp)
	check if a specific node is the proper owner, name, and type More...

status_t	xml_endnode_match (const xml_node_t startnode, const xml_node_t endnode)
	check if a specific node is the proper endnode match for a given startnode More...

boolean	xml_docdone (xmlTextReaderPtr reader)
	check if the input is completed for a given PDU More...

void	xml_dump_node (const xml_node_t *node, log_debug_t lvl)
	Debug function to printf xml_node_t contents. More...

void	xml_init_attrs (xml_attrs_t *attrs)
	initialize an xml_attrs_t variable More...

xml_attr_t *	xml_new_attr (void)
	malloc and init an attribute struct More...

void	xml_free_attr (xml_attr_t *attr)
	free an attribute More...

status_t	xml_add_attr (xml_attrs_t attrs, xmlns_id_t ns_id, const xmlChar attr_name, const xmlChar *attr_val)
	add an attribute to an attribute list More...

xml_attr_t *	xml_add_qattr (xml_attrs_t attrs, xmlns_id_t ns_id, const xmlChar attr_qname, uint32 plen, const xmlChar attr_val, status_t res)
	add a qualified attribute to an attribute list with a prefix More...

status_t	xml_add_xmlns_attr (xml_attrs_t attrs, xmlns_id_t ns_id, const xmlChar pfix)
	add an xmlns decl to the attribute Queue More...

status_t	xml_add_xmlns_attr_string (xml_attrs_t attrs, const xmlChar ns, const xmlChar *pfix)
	add an xmlns decl to the attribute Queue More...

status_t	xml_add_inv_xmlns_attr (xml_attrs_t attrs, xmlns_id_t ns_id, const xmlChar pfix, const xmlChar *nsval)
	add an xmlns decl to the attribute Queue for an INVALID namespace. More...

xml_attr_t *	xml_first_attr (xml_attrs_t *attrs)
	get the first attribute in the list More...

xml_attr_t *	xml_get_first_attr (const xml_node_t *node)
	get the first attribute in the attrs list, from an xml_node_t param More...

xml_attr_t *	xml_next_attr (xml_attr_t *attr)
	get the next attribute in the list More...

void	xml_clean_attrs (xml_attrs_t *attrs)
	clean an xml_attrs_t variable More...

void	xml_move_attrs (xml_attrs_t src_attrs, xml_attrs_t dest_attrs)
	Move all the attrs from the src to the dest. More...

xml_attr_t *	xml_find_attr (xml_node_t node, xmlns_id_t nsid, const xmlChar attrname)
	Find an attribute. More...

xml_attr_t *	xml_find_attr_q (xml_attrs_t attrs, xmlns_id_t nsid, const xmlChar attrname)
	Find an attribute in a Q. More...

const xml_attr_t *	xml_find_ro_attr (const xml_node_t node, xmlns_id_t nsid, const xmlChar attrname)
	Find a read-only attribute. More...

uint32	xml_strlen (const xmlChar *str)
	Get the String len for xmlChar. More...

uint32	xml_strlen_sp (const xmlChar str, boolean sp)
	get length and check if any whitespace at the same time More...

uint32	xml_strcpy (xmlChar copyTo, const xmlChar copyFrom)
	String copy for xmlChar. More...

uint32	xml_strncpy (xmlChar copyTo, const xmlChar copyFrom, uint32 maxlen)
	String copy for xmlChar – checks for buffer overflow. More...

xmlChar *	xml_strdup (const xmlChar *copyFrom)
	String duplicate for xmlChar. More...

xmlChar *	xml_strcat (xmlChar appendTo, const xmlChar appendFrom)
	String concatenate for xmlChar. More...

xmlChar *	xml_strncat (xmlChar appendTo, const xmlChar appendFrom, uint32 maxlen)
	String concatenate for at most maxlen xmlChars. More...

xmlChar *	xml_strndup (const xmlChar *copyFrom, uint32 maxlen)
	String duplicate for max N xmlChars. More...

char *	xml_ch_strndup (const char *copyFrom, uint32 maxlen)
	String duplicate for max N chars. More...

int	xml_strcmp (const xmlChar s1, const xmlChar s2)
	String compare for xmlChar. More...

int	xml_stricmp (const xmlChar s1, const xmlChar s2)
	Case insensitive string compare for xmlChar. More...

int	xml_strncmp (const xmlChar s1, const xmlChar s2, uint32 maxlen)
	String compare for xmlChar for at most 'maxlen' xmlChars. More...

int	xml_strnicmp (const xmlChar s1, const xmlChar s2, uint32 maxlen)
	Case insensitive string compare for xmlChar for at most 'maxlen' xmlChars. More...

boolean	xml_isspace (uint32 ch)
	Check if an xmlChar is a space char. More...

boolean	xml_isspace_str (const xmlChar *str)
	Check if an xmlChar string is all whitespace chars. More...

int	xml_strcmp_nosp (const xmlChar s1, const xmlChar s2)
	String compare for xmlChar for 2 strings, but ignoring whitespace differences. More...

int	xml_strcmp_nosp2 (const xmlChar s1, const xmlChar s2)
	String compare for xmlChar for 2 strings, but completely ignoring whitespace differences. More...

xmlChar *	xml_copy_clean_string (const xmlChar *str)
	Get a malloced string contained the converted string from the input. More...

xmlChar	xml_convert_char_entity (const xmlChar str, uint32 used)
	Convert an XML character entity into a single xmlChar. More...

status_t	xml_check_ns (xmlTextReaderPtr reader, const xmlChar elname, xmlns_id_t id, uint32 pfix_len, const xmlChar *badns)
	Check a namespace during parsing. More...

void	xml_check_qname_content (xmlTextReaderPtr reader, xml_node_t *node)
	Check if the string node content is a likely QName. More...

status_t	xml_get_namespace_id (xmlTextReaderPtr reader, const xmlChar prefix, uint32 prefixlen, boolean register_missing, xmlns_id_t retnsid)
	Get the namespace for the specified prefix (may be NULL) Use the current XML reader context to resolve the prefix. More...

status_t	xml_consume_node (xmlTextReaderPtr reader, xml_node_t *xmlnode, boolean nserr, boolean adv)
	parse function for YIN input More...

xmlChar *	xml_trim_string (xmlChar *str)
	trim leading and trailing whitespace inline in the same buffer More...

Detailed Description

XML Write Utilities.

General Utilities that simplify usage of the libxml2 functions.

Contains many functions to interface to libxml2

    - xml_node_t allocation
      - xml_new_node
      - xml_init_node
      - xml_free_node
      - xml_clean_node

    - XmlReader utilities
      - xml_get_reader_from_buff
      - xml_get_reader_from_filespec  (parse debug test documents)
      - xml_get_reader_for_session
      - xml_reset_reader_for_session
      - xml_free_reader
      - xml_get_node_name   (xmlparser enumeration for node type)
      - xml_advance_reader
      - xml_consume_node
      - xml_consume_start_node
      - xml_consume_end_node
      - xml_node_match
      - xml_endnode_match
      - xml_docdone
      - xml_dump_node (debug printf)

    - XML Attribute utilities
      - xml_init_attrs
      - xml_add_attr
      - xml_first_attr
      - xml_next_attr
      - xml_find_attr
      - xml_clean_attrs

    - XmlChar string utilites
      - xml_strlen
      - xml_strcpy
      - xml_strncpy
      - xml_strdup
      - xml_strcat
      - xml_strncat
      - xml_strndup
      - xml_ch_strndup
      - xml_strcmp
      - xml_strncmp
      - xml_isspace
      - xml_isspace_str
      - xml_copy_clean_string
      - xml_convert_char_entity

Enumeration Type Documentation

◆ xml_nodetyp_t

enum xml_nodetyp_t

only 4 types of nodes returned

Enumerator
XML_NT_NONE	not set
XML_NT_EMPTY	standalone empty node
XML_NT_START	start-tag of an element
XML_NT_END	end-tag of an element
XML_NT_STRING	string content node

Function Documentation

◆ wr_util_check_start_depth()

boolean wr_util_check_start_depth	(	xml_msg_hdr_t *	msg,
		obj_template_t *	obj
	)

Check if the current val value for All in One mode is the value that we should start the write for.

Parameters

msg	msg to check start_level
obj	object to check against

Returns: TRUE if need to process the whole val value tree
FALSE if do not reach the start depth yet

Here is the call graph for this function:

◆ wr_util_fit_on_line()

boolean wr_util_fit_on_line	(	ses_cb_t *	scb,
		const val_value_t *	val
	)

Check if the specified value will fit on the current line or if a newline is needed first.

Parameters

scb	session control block
val	value to check

Returns: TRUE if value will fit on current line, FALSE if not

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wr_util_need_default_attr()

boolean wr_util_need_default_attr ( xml_msg_hdr_t * msg )

Check if the default attr is needed.

Parameters

msg	message header to use

Returns: TRUE if default attr needed

◆ wr_util_need_origin_attr()

boolean wr_util_need_origin_attr ( xml_msg_hdr_t * msg )

Check if the origin attr is needed.

Parameters

msg	message header to use

Returns: TRUE if origin attr needed

◆ wr_util_need_skip_any()

boolean wr_util_need_skip_any ( val_value_t * out )

Check if the output data is really an anyxml or anydata or a generic container.

In this case there are no child nodes in the schema tree. The contents of the node need special processing to output the child data nodes ignoring any schema tree

Parameters

out	== output node to check

Returns: TRUE if this is an ANY node that needs special handling; FALSE otherwise

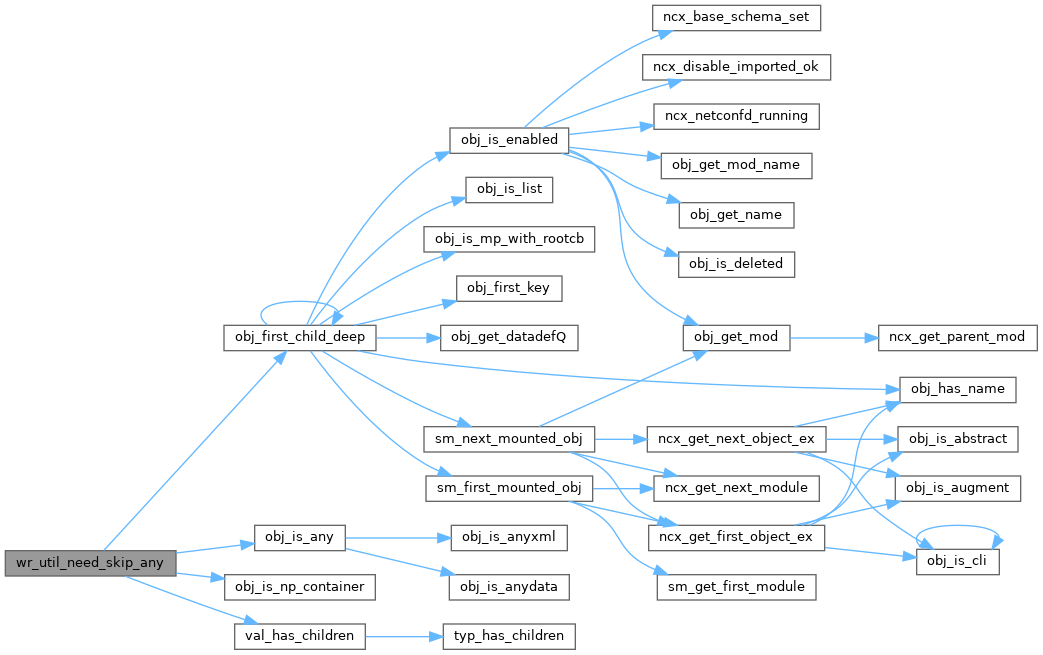

Here is the call graph for this function:

◆ xml_add_attr()

status_t xml_add_attr	(	xml_attrs_t *	attrs,
		xmlns_id_t	ns_id,
		const xmlChar *	attr_name,
		const xmlChar *	attr_val
	)

add an attribute to an attribute list

Parameters

attrs	attribute queue to add attr into
ns_id	namespace ID (use XMLNS_NONE if no prefix desired)
attr_name	attribute name string
attr_val	attribute value string

Returns: NO_ERR if all okay

Here is the call graph for this function:

◆ xml_add_inv_xmlns_attr()

status_t xml_add_inv_xmlns_attr	(	xml_attrs_t *	attrs,
		xmlns_id_t	ns_id,
		const xmlChar *	pfix,
		const xmlChar *	nsval
	)

add an xmlns decl to the attribute Queue for an INVALID namespace.

This is needed for the error-info element within the rpc-error report

Parameters

attrs	attribute queue to add to
ns_id	namespace ID of the xmlns target
pfix	namespace prefix string assigned NULL for default namespace
nsval	namespace URI value of invalid namespace

Returns: NO_ERR if all okay

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_add_qattr()

xml_attr_t * xml_add_qattr	(	xml_attrs_t *	attrs,
		xmlns_id_t	ns_id,
		const xmlChar *	attr_qname,
		uint32	plen,
		const xmlChar *	attr_val,
		status_t *	res
	)

add a qualified attribute to an attribute list with a prefix

INPUTS:

Parameters

	attrs	attribute queue to add attr into
	ns_id	namespace ID (use XMLNS_NONE if no prefix desired)
	attr_qname	attribute name string
	plen	attribute prefix length
	attr_val	attribute value string
[out]	res	address of return status *res return status

Returns: pointer to the attr record created

Here is the call graph for this function:

◆ xml_add_xmlns_attr()

status_t xml_add_xmlns_attr	(	xml_attrs_t *	attrs,
		xmlns_id_t	ns_id,
		const xmlChar *	pfix
	)

add an xmlns decl to the attribute Queue

Parameters

attrs	attribute queue to add to
ns_id	namespace ID of the xmlns target
pfix	namespace prefix string assigned NULL for default namespace

Returns: NO_ERR if all okay

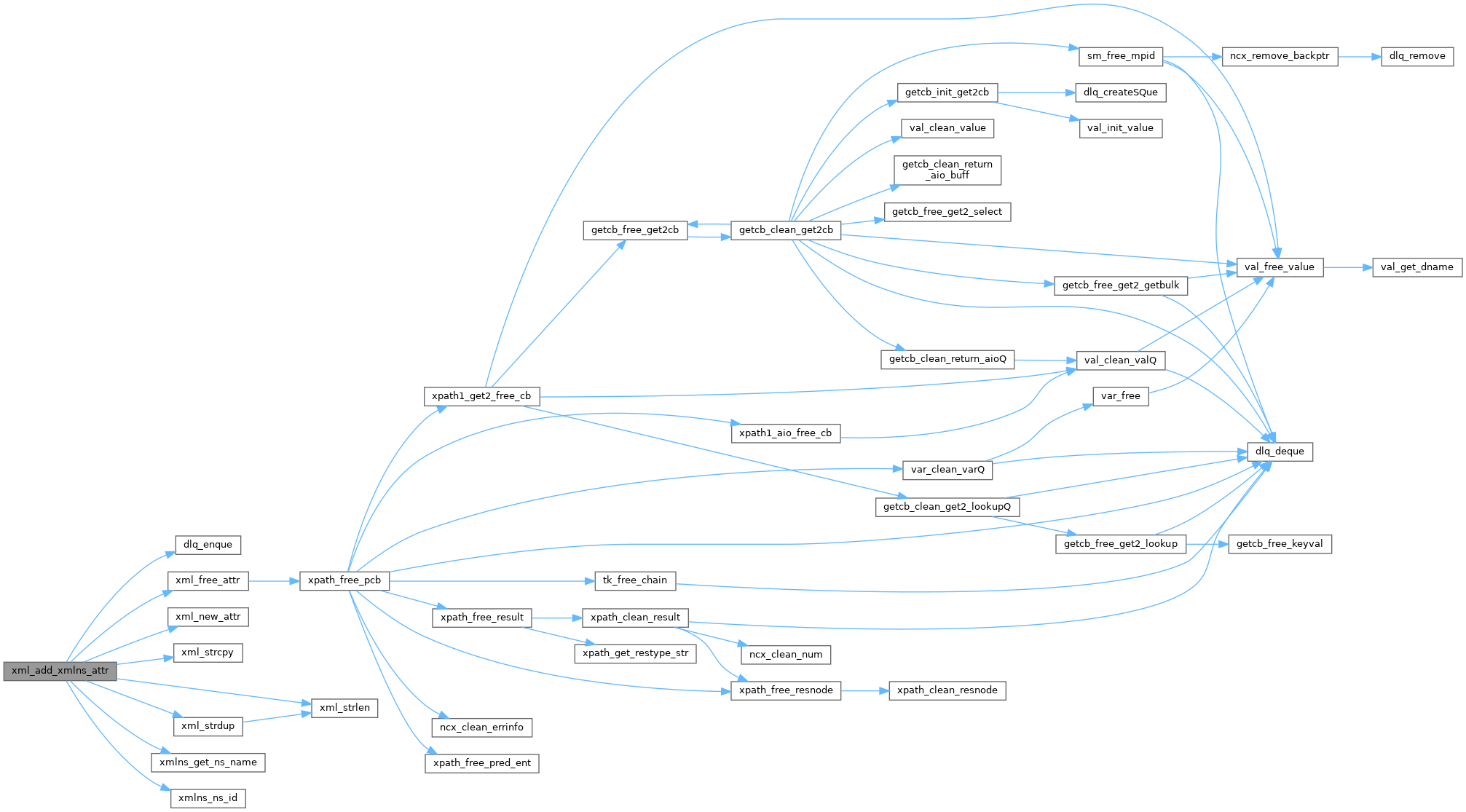

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_add_xmlns_attr_string()

status_t xml_add_xmlns_attr_string	(	xml_attrs_t *	attrs,
		const xmlChar *	ns,
		const xmlChar *	pfix
	)

add an xmlns decl to the attribute Queue

Parameters

attrs	attribute queue to add to
ns	namespace URI string of the xmlns target
pfix	namespace prefix string assigned NULL for default namespace

Returns: NO_ERR if all okay

Here is the call graph for this function:

◆ xml_advance_reader()

boolean xml_advance_reader ( xmlTextReaderPtr reader )

Advance to the next node in the specified reader.

Parameters

reader XmlReader already initialized from File, Memory, or whatever

Returns: FALSE if OEF seen, or TRUE if normal

◆ xml_ch_strndup()

char * xml_ch_strndup	(	const char *	copyFrom,
		uint32	maxlen
	)

String duplicate for max N chars.

Parameters

copyFrom	zero-terminated char string to copy from
maxlen	max number of non-zero chars to copy

Returns: pointer to new malloced string or NULL if some error

◆ xml_check_ns()

status_t xml_check_ns	(	xmlTextReaderPtr	reader,
		const xmlChar *	elname,
		xmlns_id_t *	id,
		uint32 *	pfix_len,
		const xmlChar **	badns
	)

Check a namespace during parsing.

Used by internal parser only

Parameters

	reader	XmlReader already initialized from File, Memory, or whatever pfs->ns_id == element namespace to check
	elname	element name to check
[out]	id	address of return id param *id namespace ID found or 0 if none
[out]	pfix_len	address of return prefix length *pfix_len filled in > 0 if one found real element name will start at pfix_len+1 if pfix is non-NULL
[out]	badns	address of return bad namespace string *badns pointer to unknown namespace if error returned

Returns: status; could be error if namespace specified but not supported

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_check_qname_content()

void xml_check_qname_content	(	xmlTextReaderPtr	reader,
		xml_node_t *	node
	)

Check if the string node content is a likely QName.

If so, then get the namespace URI for the prefix, look it up in def_reg, and store the NSID in the node

Parameters

reader	reader to use
node	current string node in progress

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_clean_attrs()

void xml_clean_attrs ( xml_attrs_t * attrs )

clean an xml_attrs_t variable

Parameters

attrs attribute queue to clean

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_clean_node()

void xml_clean_node ( xml_node_t * node )

Clean an xml_node_t struct.

Parameters

node	pointer to node to clean

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_consume_node()

status_t xml_consume_node	(	xmlTextReaderPtr	reader,
		xml_node_t *	xmlnode,
		boolean	nserr,
		boolean	adv
	)

parse function for YIN input

Parameters

	reader	xmlTextReader to use
[in,out]	xmlnode	address of node pointer to use MUST be an initialized node with xml_new_node or xml_init_node *xmlnode filled in or malloced and filled-in xml node
	nserr	TRUE if bad namespace should be checked; FALSE if not
	adv	TRUE if advance reader FALSE if no advance (reget current node)

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_convert_char_entity()

xmlChar xml_convert_char_entity	(	const xmlChar *	str,
		uint32 *	used
	)

Convert an XML character entity into a single xmlChar.

Parameters

	str	string pointing to start of char entity
[out]	used	address of number of chars consumed *used number of chars consumed

Returns: converted xmlChar

Here is the call graph for this function:

◆ xml_copy_clean_string()

xmlChar * xml_copy_clean_string ( const xmlChar * str )

Get a malloced string contained the converted string from the input.

Get rid of the leading and trailing whilespace

Character entities have already been removed by the xmlTextReader

Parameters

str	xmlChar string to check

Returns: pointer to new malloced string

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_docdone()

boolean xml_docdone ( xmlTextReaderPtr reader )

check if the input is completed for a given PDU

Parameters

reader xml text reader

Returns: TRUE if document is done
FALSE if document is not done or some error If a node is read, the reader will be pointing to that node

Here is the caller graph for this function:

◆ xml_dump_node()

void xml_dump_node	(	const xml_node_t *	node,
		log_debug_t	lvl
	)

Debug function to printf xml_node_t contents.

Parameters

node	node to dump
lvl	debug level for output

Here is the caller graph for this function:

◆ xml_endnode_match()

status_t xml_endnode_match	(	const xml_node_t *	startnode,
		const xml_node_t *	endnode
	)

check if a specific node is the proper endnode match for a given startnode

Parameters

startnode	start node to match against
endnode	potential end node to test

Returns: status

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_find_attr()

xml_attr_t * xml_find_attr	(	xml_node_t *	node,
		xmlns_id_t	nsid,
		const xmlChar *	attrname
	)

Find an attribute.

Must be called after xxx_xml_consume_node Go looking for the specified attribute node

Parameters

node	xml_node_t to check
nsid	namespace ID of attribute to find
attrname	attribute name to find

Returns: pointer to found xml_attr_t or NULL if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_find_attr_q()

xml_attr_t * xml_find_attr_q	(	xml_attrs_t *	attrs,
		xmlns_id_t	nsid,
		const xmlChar *	attrname
	)

Find an attribute in a Q.

Must be called after xxx_xml_consume_node Go looking for the specified attribute node

Parameters

attrs	attribute queue to search
nsid	namespace ID of attribute to find
attrname	attribute name to find

Returns: pointer to found xml_attr_t or NULL if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_find_ro_attr()

const xml_attr_t * xml_find_ro_attr	(	const xml_node_t *	node,
		xmlns_id_t	nsid,
		const xmlChar *	attrname
	)

Find a read-only attribute.

Must be called after xxx_xml_consume_node Go looking for the specified attribute node

Parameters

node	xml_node_t to check
nsid	namespace ID of attribute to find
attrname	attribute name to find

Returns: const pointer to found xml_attr_t or NULL if not found

Here is the call graph for this function:

◆ xml_first_attr()

xml_attr_t * xml_first_attr ( xml_attrs_t * attrs )

get the first attribute in the list

Parameters

attrs attribute queue to get from

Returns: pointer to first entry or NULL if none

Here is the caller graph for this function:

◆ xml_free_attr()

void xml_free_attr ( xml_attr_t * attr )

free an attribute

Parameters

attr	xml_attr_t to free

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_free_node()

void xml_free_node ( xml_node_t * node )

Free an xml_node_t struct.

Parameters

node	pointer to node to free

Here is the call graph for this function:

◆ xml_free_reader()

void xml_free_reader ( xmlTextReaderPtr reader )

Free the previously allocated xmlTextReader.

Parameters

reader xmlTextReader to close and deallocate

Here is the caller graph for this function:

◆ xml_get_first_attr()

xml_attr_t * xml_get_first_attr ( const xml_node_t * node )

get the first attribute in the attrs list, from an xml_node_t param

Parameters

node	node with the attrQ to use

Returns: pointer to first entry or NULL if none

◆ xml_get_namespace_id()

status_t xml_get_namespace_id	(	xmlTextReaderPtr	reader,
		const xmlChar *	prefix,
		uint32	prefixlen,
		boolean	register_missing,
		xmlns_id_t *	retnsid
	)

Get the namespace for the specified prefix (may be NULL) Use the current XML reader context to resolve the prefix.

Parameters

	reader	XML reader to use
	prefix	prefix string to use (NULL == default namespace)
	prefixlen	N if not a Z-terminated string 0 if it is a Z-terminated string
	register_missing	T: register temporary NSID if valid namespace found but not registered
[out]	retnsid	address of return namespace ID *retnsid XMLNS ID for the namespace, 0 if none found INVALID ID if unknown

Returns: status

Here is the call graph for this function:

◆ xml_get_node_name()

const char * xml_get_node_name ( int nodeval )

get the node type according to the xmlElementType enum list in /usr/include/libxml/libxml/tree.h

Parameters

nodeval integer node type from system

Returns: string corresponding to the integer value

Here is the caller graph for this function:

◆ xml_get_reader_for_session()

status_t xml_get_reader_for_session	(	xmlInputReadCallback	readfn,
		xmlInputCloseCallback	closefn,
		void *	context,
		xmlTextReaderPtr *	reader
	)

Get a new xmlTextReader for parsing the input of a NETCONF session.

Parameters

	readfn	IO read function to use for this xmlTextReader
	closefn	IO close fn to use for this xmlTextReader
	context	the ses_cb_t pointer passes as a void * this will be passed to the read and close functions
[out]	reader	address of reader return value *reader == pointer to new reader or NULL if some error

Returns: status of the operation

Here is the caller graph for this function:

◆ xml_get_reader_from_buff()

status_t xml_get_reader_from_buff	(	const xmlChar *	buff,
		xmlTextReaderPtr *	reader
	)

Get a new xmlTextReader for parsing a debug test file.

Parameters

	buff	buffer containing XML to parse
[out]	reader	address of reader return value *reader pointer to new reader or NULL if some error

Returns: status of the operation

Here is the caller graph for this function:

◆ xml_get_reader_from_filespec()

status_t xml_get_reader_from_filespec	(	const char *	filespec,
		xmlTextReaderPtr *	reader
	)

Get a new xmlTextReader for parsing a debug test file.

Parameters

	filespec	full filename including path of the XML instance document to parse
[out]	reader	address of reader return value *reader == pointer to new reader or NULL if some error

Returns: status of the operation

Here is the caller graph for this function:

◆ xml_init_attrs()

void xml_init_attrs ( xml_attrs_t * attrs )

initialize an xml_attrs_t variable

Parameters

attrs attribute queue to init

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_init_node()

void xml_init_node ( xml_node_t * node )

Init an xml_node_t struct.

Parameters

node	pointer to node to init

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_isspace()

boolean xml_isspace ( uint32 ch )

Check if an xmlChar is a space char.

Parameters

ch	xmlChar to check

Returns: TRUE if a space, FALSE otherwise

Here is the caller graph for this function:

◆ xml_isspace_str()

boolean xml_isspace_str ( const xmlChar * str )

Check if an xmlChar string is all whitespace chars.

Parameters

str	xmlChar string to check

Returns: TRUE if all whitespace, FALSE otherwise

Here is the call graph for this function:

◆ xml_move_attrs()

void xml_move_attrs	(	xml_attrs_t *	src_attrs,
		xml_attrs_t *	dest_attrs
	)

Move all the attrs from the src to the dest.

Parameters

src_attrs	attribute queue to move from
dest_attrs	attribute queue to move to

Here is the call graph for this function:

◆ xml_new_attr()

xml_attr_t * xml_new_attr ( void )

malloc and init an attribute struct

Returns: pointer to new xml_attr_t or NULL if malloc error

Here is the caller graph for this function:

◆ xml_new_node()

xml_node_t * xml_new_node ( void )

Malloc and init a new xml_node_t struct.

Returns: pointer to new node or NULL if malloc error

Here is the call graph for this function:

◆ xml_next_attr()

xml_attr_t * xml_next_attr ( xml_attr_t * attr )

get the next attribute in the list

Parameters

attr	attribute entry to get next for

Returns: pointer to the next entry or NULL if none

Here is the caller graph for this function:

◆ xml_node_match()

status_t xml_node_match	(	const xml_node_t *	node,
		xmlns_id_t	nsid,
		const xmlChar *	elname,
		xml_nodetyp_t	nodetyp
	)

check if a specific node is the proper owner, name, and type

Parameters

node	node to match against
nsid	namespace ID to match (0 == match any)
elname	element name to match (NULL == match any)
nodetyp	node type to match (XML_NT_NONE == match any)

Returns: status

Here is the call graph for this function:

◆ xml_reset_reader_for_session()

status_t xml_reset_reader_for_session	(	xmlInputReadCallback	readfn,
		xmlInputCloseCallback	closefn,
		void *	context,
		xmlTextReaderPtr	reader
	)

Reset the xmlTextReader for parsing the input of a NETCONF session.

Parameters

	readfn	IO read function to use for this xmlTextReader
	closefn	IO close fn to use for this xmlTextReader
	context	the ses_cb_t pointer passes as a void * this will be passed to the read and close functions
[out]	reader	address of reader return value *reader == pointer to new reader or NULL if some error

Returns: status of the operation

Here is the caller graph for this function:

◆ xml_strcat()

xmlChar * xml_strcat	(	xmlChar *	appendTo,
		const xmlChar *	appendFrom
	)

String concatenate for xmlChar.

Parameters

appendTo	zero-terminated xmlChar string to append to
appendFrom	zero-terminated xmlChar string to append from

Returns: appendTo if no error or NULL if some error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_strcmp()

int xml_strcmp	(	const xmlChar *	s1,
		const xmlChar *	s2
	)

String compare for xmlChar.

Parameters

s1	zero-terminated xmlChar string to compare
s2	zero-terminated xmlChar string to compare

Returns

compare result

    == -1 : string 1 is less than string 2
    == 0  : strings are equal
    == 1  : string 1 is greater than string 2

◆ xml_strcmp_nosp()

int xml_strcmp_nosp	(	const xmlChar *	s1,
		const xmlChar *	s2
	)

String compare for xmlChar for 2 strings, but ignoring whitespace differences.

All consecutive whitespace is treated as one space char for comparison purposes

Needed by yangdiff to compare description clauses which have been reformated

Parameters

s1	zero-terminated xmlChar string to compare
s2	zero-terminated xmlChar string to compare

Returns

compare result

    == -1 : string 1 is less than string 2
    == 0  : strings are equal
    == 1  : string 1 is greater than string 2

Here is the call graph for this function:

◆ xml_strcmp_nosp2()

int xml_strcmp_nosp2	(	const xmlChar *	s1,
		const xmlChar *	s2
	)

String compare for xmlChar for 2 strings, but completely ignoring whitespace differences.

It skips all the spaces in both strings. All consecutive whitespace is treated as one space char for comparison purposes

Needed by restconf accept header validation to compare accept header entries which may contain multiple spaces

Parameters

s1	zero-terminated xmlChar string to compare
s2	zero-terminated xmlChar string to compare

Returns

compare result

    == -1 : string 1 is less than string 2
    == 0  : strings are equal
    == 1  : string 1 is greater than string 2

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_strcpy()

uint32 xml_strcpy	(	xmlChar *	copyTo,
		const xmlChar *	copyFrom
	)

String copy for xmlChar.

does not check for buffer overflow Even if return value is zero, the EOS char is copied

Parameters

copyTo	buffer to copy into
copyFrom	zero-terminated xmlChar string to copy from

Returns: number of bytes copied to the result buffer, not including EOS

◆ xml_strdup()

xmlChar * xml_strdup ( const xmlChar * copyFrom )

String duplicate for xmlChar.

Parameters

copyFrom zero-terminated xmlChar string to copy from

Returns: pointer to new malloced string or NULL if some error

Here is the call graph for this function:

◆ xml_stricmp()

int xml_stricmp	(	const xmlChar *	s1,
		const xmlChar *	s2
	)

Case insensitive string compare for xmlChar.

Parameters

s1	zero-terminated xmlChar string to compare
s2	zero-terminated xmlChar string to compare

Returns

compare result

    == -1 : string 1 is less than string 2
    == 0  : strings are equal
    == 1  : string 1 is greater than string 2

Here is the caller graph for this function:

◆ xml_strlen()

uint32 xml_strlen ( const xmlChar * str )

Get the String len for xmlChar.

Does not check for buffer overflow

Parameters

str	buffer to check

Returns: number of xmlChars before null terminator found

◆ xml_strlen_sp()

uint32 xml_strlen_sp	(	const xmlChar *	str,
		boolean *	sp
	)

get length and check if any whitespace at the same time

String len for xmlChar – does not check for buffer overflow Check for any whitespace in the string as well

Parameters

	str	buffer to check
[out]	sp	address of any-spaces-test output *sp TRUE if any whitespace found in the string

Returns: number of xmlChars before null terminator found

Here is the call graph for this function:

◆ xml_strncat()

xmlChar * xml_strncat	(	xmlChar *	appendTo,
		const xmlChar *	appendFrom,
		uint32	maxlen
	)

String concatenate for at most maxlen xmlChars.

Parameters

appendTo	zero-terminated xmlChar string to append to
appendFrom	zero-terminated xmlChar string to append from
maxlen	max number of chars to append

Returns: appendTo if no error or NULL if some error

Here is the call graph for this function:

◆ xml_strncmp()

int xml_strncmp	(	const xmlChar *	s1,
		const xmlChar *	s2,
		uint32	maxlen
	)

String compare for xmlChar for at most 'maxlen' xmlChars.

Parameters

s1	zero-terminated xmlChar string to compare
s2	zero-terminated xmlChar string to compare
maxlen	max number of xmlChars to compare

Returns

compare result

    == -1 : string 1 is less than string 2
    == 0  : strings are equal
    == 1  : string 1 is greater than string 2

Here is the caller graph for this function:

◆ xml_strncpy()

uint32 xml_strncpy	(	xmlChar *	copyTo,
		const xmlChar *	copyFrom,
		uint32	maxlen
	)

String copy for xmlChar – checks for buffer overflow.

Parameters

copyTo	buffer to copy into
copyFrom	zero-terminated xmlChar string to copy from
maxlen	max number of xmlChars to copy, but does include the terminating zero that is added if this max is reached

Returns: number of bytes copied to the result buffer

Here is the caller graph for this function:

◆ xml_strndup()

xmlChar * xml_strndup	(	const xmlChar *	copyFrom,
		uint32	maxlen
	)

String duplicate for max N xmlChars.

Parameters

copyFrom	zero-terminated xmlChar string to copy from
maxlen	max number of non-zero chars to copy

Returns: pointer to new malloced string or NULL if some error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xml_strnicmp()

int xml_strnicmp	(	const xmlChar *	s1,
		const xmlChar *	s2,
		uint32	maxlen
	)

Case insensitive string compare for xmlChar for at most 'maxlen' xmlChars.

Parameters

s1	zero-terminated xmlChar string to compare
s2	zero-terminated xmlChar string to compare
maxlen	max number of xmlChars to compare

Returns

compare result

    == -1 : string 1 is less than string 2
    == 0  : strings are equal
    == 1  : string 1 is greater than string 2

◆ xml_trim_string()

xmlChar * xml_trim_string ( xmlChar * str )

trim leading and trailing whitespace inline in the same buffer

Adapted from the Internet:

http://stackoverflow.com/questions/122616/ how-do-i-trim-leading-trailing-whitespace-in-a-standard-way

Parameters

[out]

str

string to trim

str buffer altered

Returns: pointer to str; NULL if error

Here is the call graph for this function:

Data Structures

Typedefs

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ xml_nodetyp_t

Function Documentation

◆ wr_util_check_start_depth()

◆ wr_util_fit_on_line()

◆ wr_util_need_default_attr()

◆ wr_util_need_origin_attr()

◆ wr_util_need_skip_any()

◆ xml_add_attr()

◆ xml_add_inv_xmlns_attr()

◆ xml_add_qattr()

◆ xml_add_xmlns_attr()

◆ xml_add_xmlns_attr_string()

◆ xml_advance_reader()

◆ xml_ch_strndup()

◆ xml_check_ns()

◆ xml_check_qname_content()

◆ xml_clean_attrs()

◆ xml_clean_node()

◆ xml_consume_node()

◆ xml_convert_char_entity()

◆ xml_copy_clean_string()

◆ xml_docdone()

◆ xml_dump_node()

◆ xml_endnode_match()

◆ xml_find_attr()

◆ xml_find_attr_q()

◆ xml_find_ro_attr()

◆ xml_first_attr()

◆ xml_free_attr()

◆ xml_free_node()

◆ xml_free_reader()

◆ xml_get_first_attr()

◆ xml_get_namespace_id()

◆ xml_get_node_name()

◆ xml_get_reader_for_session()

◆ xml_get_reader_from_buff()

◆ xml_get_reader_from_filespec()

◆ xml_init_attrs()

◆ xml_init_node()

◆ xml_isspace()

◆ xml_isspace_str()

◆ xml_move_attrs()

◆ xml_new_attr()

◆ xml_new_node()

◆ xml_next_attr()

◆ xml_node_match()

◆ xml_reset_reader_for_session()

◆ xml_strcat()

◆ xml_strcmp()

◆ xml_strcmp_nosp()

◆ xml_strcmp_nosp2()

◆ xml_strcpy()

◆ xml_strdup()

◆ xml_stricmp()

◆ xml_strlen()

◆ xml_strlen_sp()

◆ xml_strncat()

◆ xml_strncmp()

◆ xml_strncpy()

◆ xml_strndup()

◆ xml_strnicmp()

◆ xml_trim_string()
