agt_not_msg_t Struct Reference

one notification message that will be sent to all subscriptions in the stream and kept in the replay buffer for that stream (notificationQ) More...

#include <agt_not.h>

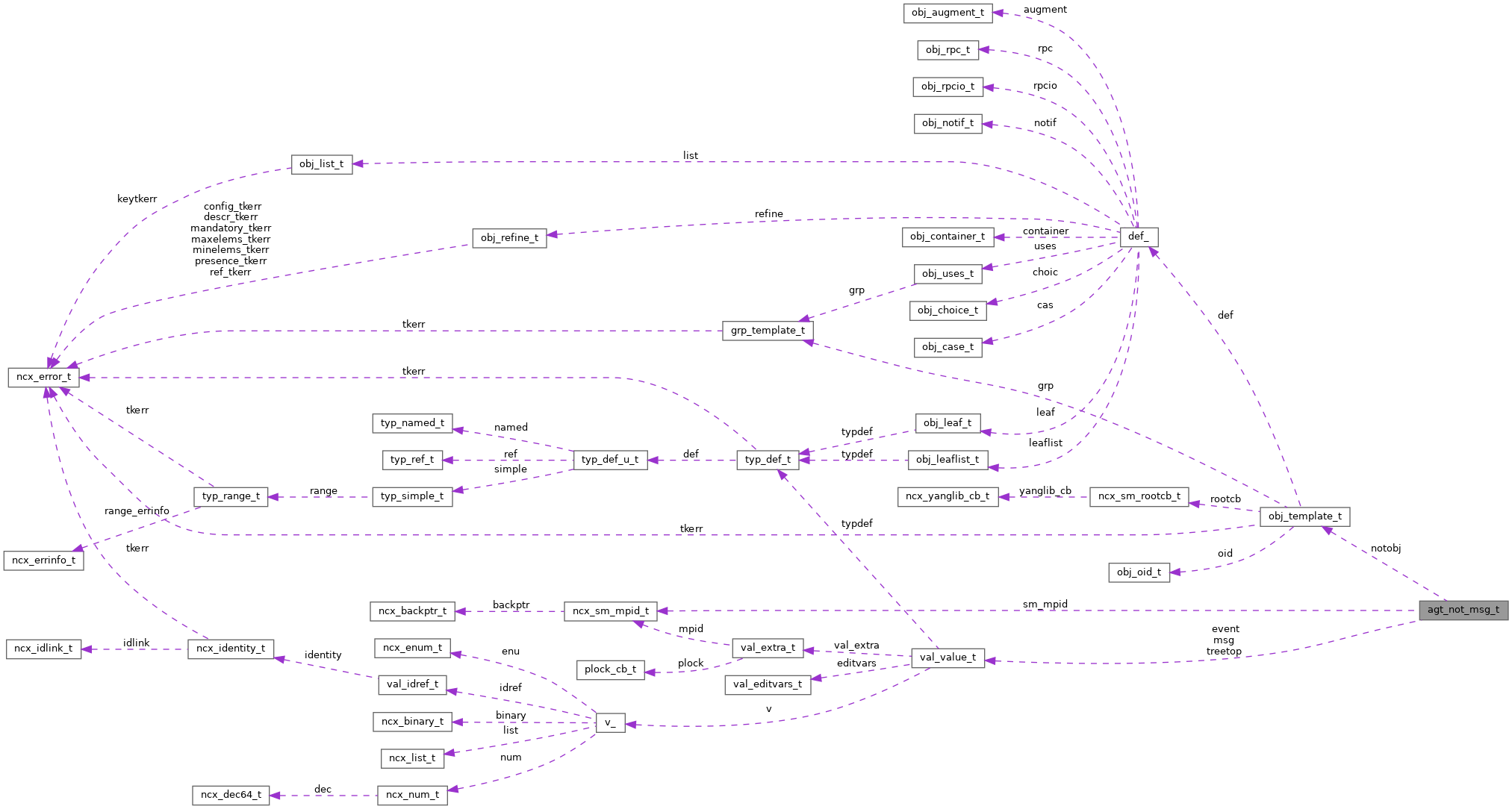

Collaboration diagram for agt_not_msg_t:

Data Fields
dlq_hdr_t	qhdr
	queue header
obj_template_t *	notobj
	notification event object for this message
dlq_hdr_t	keyQ
	notification ancestor keyQ if this is a YANG 1.1 nested notification. More...
uint32	msgid
	messsage ID assigned to this notification
xmlChar	eventTime [TSTAMP_MIN_SIZE]
	event received timestamp
val_value_t *	msg
	the /notification element More...
val_value_t *	event
	backptr inside msg for filter for top-level notifications
boolean	usemsgid
	internal field to use or change msgid
status_t	res
	internal status for making the message to prevent a malformed notification message from being sent to subsequent sessions
val_value_t *	treetop
	internal backptr to the top of the instance hierarchy if this is a nested notification; YANG 1.1 says to use this treetop for the filter Not the event embedded within it
ncx_sm_mpid_t *	sm_mpid
	clone of the MPID to use if this is a schema-mounted notification. More...

Detailed Description

one notification message that will be sent to all subscriptions in the stream and kept in the replay buffer for that stream (notificationQ)

Field Documentation

keyQ

dlq_hdr_t keyQ

notification ancestor keyQ if this is a YANG 1.1 nested notification.

• In this case the notobj is not a top-level object and the value tree will be generated with the notification within it, as defined in RFC 7950.
• Keys set in order by the caller: Q of val_value_t
• These value structs can be generic
• The names are not important and will not be used
• Only the order is important: top-down, left-to-right
• The actual object template for each key leaf will be used when the notification message is generated

msg

val_value_t* msg

the /notification element

• This is malloced and freed when this struct is freed

sm_mpid

ncx_sm_mpid_t* sm_mpid

clone of the MPID to use if this is a schema-mounted notification.

If not set then the first MPID will be used. If no MP instances found then the notification will be dropped.

---

The documentation for this struct was generated from the following file:

• agt_not.h
