YANG Parser Control Block and General Access Functions. More...

Collaboration diagram for Parser Utilities:

Data Structures
struct	yang_stmt_t
	YANG statement node to track top-level statement order for doc output. More...

struct	yang_node_t
	YANG node entry to track if a module has been used already. More...

struct	yang_import_ptr_t
	YANG import pointer node to track all imports used. More...

struct	failed_ptr_t
	pointer to failed modules to track all of them Prevents loading a broken module multiple times More...

struct	yang_pcb_t
	YANG parser control block. More...

Enumerations
enum	yang_parsetype_t { YANG_PT_NONE , YANG_PT_TOP , YANG_PT_INCLUDE , YANG_PT_IMPORT }
	YANG parser mode entry types. More...

Functions
status_t	yang_consume_semiapp (tk_chain_t tkc, ncx_module_t mod, dlq_hdr_t *appinfoQ)
	consume a stmtsep clause More...

status_t	yang_consume_semiapp2 (tk_chain_t tkc, ncx_module_t mod, dlq_hdr_t *appinfoQ, boolean plain_ok)
	consume a stmtsep clause, check plain_ok More...

status_t	yang_consume_string (tk_chain_t tkc, ncx_module_t mod, xmlChar **field)
	consume 1 string token More...

status_t	yang_consume_keyword (tk_chain_t tkc, ncx_module_t mod, xmlChar prefix, xmlChar field)
	consume 1 YANG keyword or vendor extension keyword More...

status_t	yang_consume_nowsp_string (tk_chain_t tkc, ncx_module_t mod, xmlChar **field)
	consume 1 string without any whitespace More...

status_t	yang_consume_id_string (tk_chain_t tkc, ncx_module_t mod, xmlChar **field)
	consume an identifier-str token More...

status_t	yang_consume_pid_string (tk_chain_t tkc, ncx_module_t mod, xmlChar prefix, xmlChar field)
	consume an identifier-ref-str token More...

status_t	yang_consume_error_stmts (tk_chain_t tkc, ncx_module_t mod, ncx_errinfo_t errinfo, dlq_hdr_t appinfoQ, boolean allow_modifier, boolean *gotinverted)
	consume the range. More...

status_t	yang_consume_descr (tk_chain_t tkc, ncx_module_t mod, xmlChar *str, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one descriptive string clause More...

status_t	yang_consume_pid (tk_chain_t tkc, ncx_module_t mod, xmlChar prefixstr, xmlChar str, boolean dupflag, dlq_hdr_t appinfoQ)
	consume one [prefix:]name clause More...

status_t	yang_consume_strclause (tk_chain_t tkc, ncx_module_t mod, xmlChar *str, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one normative string clause More...

status_t	yang_consume_status (tk_chain_t tkc, ncx_module_t mod, ncx_status_t status, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one status clause More...

status_t	yang_consume_ordered_by (tk_chain_t tkc, ncx_module_t mod, boolean ordsys, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one ordered-by clause More...

status_t	yang_consume_max_elements (tk_chain_t tkc, ncx_module_t mod, uint32 maxelems, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one max-elements clause More...

status_t	yang_consume_must (tk_chain_t tkc, ncx_module_t mod, dlq_hdr_t mustQ, dlq_hdr_t appinfoQ, boolean do_parse)
	consume one must-stmt into mustQ More...

status_t	yang_consume_when (tk_chain_t tkc, ncx_module_t mod, obj_template_t obj, boolean whenflag)
	consume one when-stmt into obj->when More...

status_t	yang_consume_boolean (tk_chain_t tkc, ncx_module_t mod, boolean boolval, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one boolean clause Parse the boolean parameter based statement More...

status_t	yang_consume_int32 (tk_chain_t tkc, ncx_module_t mod, int32 num, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one int32 clause Parse the int32 based parameter statement More...

status_t	yang_consume_uint32 (tk_chain_t tkc, ncx_module_t mod, uint32 num, boolean dupflag, dlq_hdr_t *appinfoQ)
	consume one uint32 clause More...

status_t	yang_consume_modifier (tk_chain_t tkc, ncx_module_t mod, boolean dupflag, dlq_hdr_t appinfoQ)
	consume one modifier-stmt More...

status_t	yang_find_imp_typedef (yang_pcb_t pcb, tk_chain_t tkc, ncx_module_t mod, const xmlChar prefix, const xmlChar name, ncx_error_t tkerr, typ_template_t **typ)
	Find the specified imported typedef. More...

status_t	yang_find_imp_grouping (yang_pcb_t pcb, tk_chain_t tkc, ncx_module_t mod, const xmlChar prefix, const xmlChar name, ncx_error_t tkerr, grp_template_t **grp)
	Find the specified imported grouping. More...

status_t	yang_find_imp_extension (yang_pcb_t pcb, tk_chain_t tkc, ncx_module_t mod, const xmlChar prefix, const xmlChar name, ncx_error_t tkerr, ext_template_t **ext)
	Find the specified imported extension. More...

status_t	yang_find_imp_feature (yang_pcb_t pcb, tk_chain_t tkc, ncx_module_t mod, const xmlChar prefix, const xmlChar name, ncx_error_t tkerr, ncx_feature_t **feature)
	Find the specified imported feature. More...

status_t	yang_find_imp_identity (yang_pcb_t pcb, tk_chain_t tkc, ncx_module_t mod, const xmlChar prefix, const xmlChar name, ncx_error_t tkerr, ncx_identity_t **identity)
	Find the specified imported identity. More...

void	yang_check_obj_used (tk_chain_t tkc, ncx_module_t mod, dlq_hdr_t typeQ, dlq_hdr_t grpQ)
	generate warnings if local typedefs/groupings not used More...

void	yang_check_imports_used (tk_chain_t tkc, ncx_module_t mod)
	generate warnings if imports not used More...

yang_node_t *	yang_new_node (void)
	Create a new YANG parser node. More...

void	yang_free_node (yang_node_t *node)
	Clean and delete the memory for a YANG parser node. More...

void	yang_clean_nodeQ (dlq_hdr_t *que)
	Delete all the node entries in a YANG parser node Q. More...

yang_node_t *	yang_find_node (const dlq_hdr_t que, const xmlChar name, const xmlChar *revision)
	Find a YANG parser node in the specified Q. More...

void	yang_dump_nodeQ (dlq_hdr_t que, const char name)
	log_debug output for contents of the specified nodeQ More...

yang_pcb_t *	yang_new_pcb (void)
	Create a new YANG parser control block. More...

void	yang_free_pcb (yang_pcb_t *pcb)
	Delete a YANG parser control block. More...

yang_stmt_t *	yang_new_typ_stmt (typ_template_t *typ)
	Create a new YANG stmt node for a typedef. More...

yang_stmt_t *	yang_new_grp_stmt (grp_template_t *grp)
	Create a new YANG stmt node for a grouping. More...

yang_stmt_t *	yang_new_ext_stmt (ext_template_t *ext)
	Create a new YANG stmt node for an extension. More...

yang_stmt_t *	yang_new_obj_stmt (obj_template_t *obj)
	Create a new YANG stmt node for an object. More...

yang_stmt_t *	yang_new_id_stmt (ncx_identity_t *identity)
	Create a new YANG stmt node for an identity. More...

yang_stmt_t *	yang_new_feature_stmt (ncx_feature_t *feature)
	Create a new YANG stmt node for a feature definition. More...

yang_stmt_t *	yang_new_deviation_stmt (obj_deviation_t *deviation)
	Create a new YANG stmt node for a deviation definition. More...

void	yang_free_stmt (yang_stmt_t *stmt)
	Delete a YANG statement node. More...

void	yang_clean_stmtQ (dlq_hdr_t *que)
	Delete a Q of YANG statement node. More...

status_t	yang_validate_date_string (tk_chain_t tkc, ncx_module_t mod, ncx_error_t tkerr, const xmlChar datestr)
	Validate a YANG date string for a revision entry. More...

void	yang_skip_statement (tk_chain_t tkc, ncx_module_t mod)
	Skip past the current invalid statement, starting at an invalid keyword. More...

boolean	yang_top_keyword (const xmlChar *keyword)
	Check if the string is a top-level YANG keyword. More...

yang_import_ptr_t *	yang_new_import_ptr (const xmlChar modname, const xmlChar modprefix, const xmlChar revision, const xmlChar descr, const xmlChar *ref)
	Create a new YANG import pointer node. More...

void	yang_free_import_ptr (yang_import_ptr_t *impptr)
	Delete a YANG import pointer node. More...

void	yang_clean_import_ptrQ (dlq_hdr_t *que)
	Delete all the node entries in a YANG import pointer node Q. More...

yang_import_ptr_t *	yang_find_import_ptr (dlq_hdr_t que, const xmlChar name)
	Find a YANG import pointer node in the specified Q. More...

int32	yang_compare_revision_dates (const xmlChar revstring1, const xmlChar revstring2)
	Compare 2 revision strings, which either may be NULL. More...

xmlChar *	yang_make_filename (const xmlChar modname, const xmlChar revision, boolean isyang)
	Malloc and construct a YANG filename. More...

status_t	yang_copy_filename (const xmlChar modname, const xmlChar revision, xmlChar *buffer, uint32 bufflen, boolean isyang)
	Construct a YANG filename into a provided buffer. More...

boolean	yang_split_filename (const xmlChar filename, uint32 modnamelen)
	Split a module parameter into its filename components. More...

boolean	yang_fileext_is_yang (const xmlChar *filename)
	Check if the filespec ends with the .yang extension. More...

boolean	yang_fileext_is_yin (const xmlChar *filename)
	Check if the filespec ends with the .yin extension. More...

boolean	yang_fileext_is_xml (const xmlChar *filename)
	Check if the filespec ends with the .xml extension. More...

boolean	yang_fileext_is_json (const xmlChar *filename)
	Check if the filespec ends with the .json extension. More...

void	yang_final_memcheck (void)
	Check the node malloc and free counts. More...

void	yang_set_in_yangdata (yang_pcb_t *pcb, boolean val)
	Set the in_yangdata mode. More...

boolean	yang_is_in_yangdata (const yang_pcb_t *pcb)
	Get the in_yangdata mode. More...

status_t	yang_extract_filespec_info (const char filespec, xmlChar modname, xmlChar revision, boolean isyang)
	Split a filespec into its filename components. More...

void	yang_clean_pcb_top (yang_pcb_t *pcb)
	Make sure pcb->top is freed before the pcb is reused after the bestmatch failed and NULL revision is tried. More...

xmlChar *	yang_make_sid_filename (const xmlChar modname, const xmlChar revision)
	Malloc and construct a SID filename. More...

uint32	yang_hash (const xmlChar *key, uint32 len)
	Generate a yang-hash for the specified key. More...

Detailed Description

YANG Parser Control Block and General Access Functions.

Support Experimental YANG Hash identifiers (NOT USED)

Enumeration Type Documentation

◆ yang_parsetype_t

enum yang_parsetype_t

YANG parser mode entry types.

Enumerator
YANG_PT_NONE	not set
YANG_PT_TOP	called from top level [sub]module
YANG_PT_INCLUDE	called from module include-stmt
YANG_PT_IMPORT	called from module import-stmt

Function Documentation

◆ yang_check_imports_used()

void yang_check_imports_used	(	tk_chain_t *	tkc,
		ncx_module_t *	mod
	)

generate warnings if imports not used

Check if the imports statements are actually used Check if the import is newer than the importing module Generate warnings if so

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

tkc	token chain in progress
mod	module in progress

Here is the call graph for this function:

◆ yang_check_obj_used()

void yang_check_obj_used	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	typeQ,
		dlq_hdr_t *	grpQ
	)

generate warnings if local typedefs/groupings not used

Check if the local typedefs and groupings are actually used Generate warnings if not used

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

tkc	token chain in progress
mod	module in progress
typeQ	typedef Q to check
grpQ	pgrouping Q to check

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_clean_import_ptrQ()

void yang_clean_import_ptrQ ( dlq_hdr_t * que )

Delete all the node entries in a YANG import pointer node Q.

Parameters

que	Q of yang_import_ptr_t to clean

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_clean_nodeQ()

void yang_clean_nodeQ ( dlq_hdr_t * que )

Delete all the node entries in a YANG parser node Q.

Parameters

que	Q of yang_node_t to clean

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_clean_pcb_top()

void yang_clean_pcb_top ( yang_pcb_t * pcb )

Make sure pcb->top is freed before the pcb is reused after the bestmatch failed and NULL revision is tried.

Parameters

pcb	pcb to clean

Here is the call graph for this function:

◆ yang_clean_stmtQ()

void yang_clean_stmtQ ( dlq_hdr_t * que )

Delete a Q of YANG statement node.

Parameters

que	Q of yang_stmt_t node to delete

Here is the call graph for this function:

◆ yang_compare_revision_dates()

int32 yang_compare_revision_dates	(	const xmlChar *	revstring1,
		const xmlChar *	revstring2
	)

Compare 2 revision strings, which either may be NULL.

Parameters

revstring1	revision string 1 (may be NULL)
revstring2	revision string 2 (may be NULL)

Returns

compare result

     -1 if revision 1 < revision 2
     0 of they are the same
     +1 if revision1 > revision 2

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_boolean()

status_t yang_consume_boolean	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		boolean *	boolval,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one boolean clause Parse the boolean parameter based statement

Current token is the starting keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	boolval	boolean value to set (may be NULL) *boolval set if NO_ERR
[out]	dupflag	address of flag to check if entry already found may be NUL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_descr()

status_t yang_consume_descr	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	str,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one descriptive string clause

Parse the description or reference statement

Current token is the starting keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[in,out]	str	string to set (may be NULL) *str set to the value if str not NULL
[out]	dupflag	flag to check if entry already found (may be NULL) *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_error_stmts()

status_t yang_consume_error_stmts	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		ncx_errinfo_t *	errinfo,
		dlq_hdr_t *	appinfoQ,
		boolean	allow_modifier,
		boolean *	gotinverted
	)

consume the range.

length. pattern. must error info extensions

Parse the sub-section as a sub-section for error-app-tag and error-message clauses

Current token is the starting left brace for the sub-section that is extending a range, length, pattern, or must statement

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	errinfo	pointer to valid ncx_errinfo_t struct *errinfo filled in with any clauses found
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found
	allow_modifier	TRUE to check for YANG 1.1 modifier keyword
[out]	gotinverted	address of return got invert-match flag *gotinverted TRUE if got invert-match flag

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_id_string()

status_t yang_consume_id_string	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	field
	)

consume an identifier-str token

Consume a YANG string token in any of the 3 forms Check that it is a valid YANG identifier string

Error messages are printed by this function!! Do not duplicate error messages upon error return

current token is advanced

Parameters

	tkc	token chain
	mod	module in progress
[out]	field	address of field to get the name string (may be NULL) *field is set with a malloced string in NO_ERR

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_int32()

status_t yang_consume_int32	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		int32 *	num,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one int32 clause Parse the int32 based parameter statement

Current token is the starting keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	num	address of int32 value to set (may be NULL) *num set to the value if NO_ERR
[out]	dupflag	address of flag to check if entry already found may be NUL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_keyword()

status_t yang_consume_keyword	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	prefix,
		xmlChar **	field
	)

consume 1 YANG keyword or vendor extension keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

current token is advanced

Parameters

	tkc	token chain
	mod	module in progress
[out]	prefix	address of field to get the prefix string (may be NULL) *prefix is set with a malloced string in NO_ERR
[out]	field	address of field to get the name string (may be NULL) *field is set with a malloced string in NO_ERR

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_max_elements()

status_t yang_consume_max_elements	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		uint32 *	maxelems,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one max-elements clause

Parse the max-elements statement

Current token is the 'max-elements' keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	maxelems	address of max-elements object to set (may be NULL) *maxelems set to the value if not NULL
[out]	dupflag	address of flag to check if entry already found may be NUL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_modifier()

status_t yang_consume_modifier	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one modifier-stmt

Current token is the 'modifier' keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Only modifier supported is invert-match This code simply checks the syntax and does not set any fields

Parameters

	tkc	token chain
	mod	module in progress
[out]	dupflag	address of flag to check if entry already found may be NUL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_must()

status_t yang_consume_must	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	mustQ,
		dlq_hdr_t *	appinfoQ,
		boolean	do_parse
	)

consume one must-stmt into mustQ

Parse the must statement

Current token is the 'must' keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	mustQ	address of Q of xpath_pcb_t structs to store a new malloced xpath_pcb_t mustQ entry malloced and added to mustQ (if NO_ERR)
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found
	do_parse	TRUE to attempt xpath1_parse_expr; FALSE to skip

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_nowsp_string()

status_t yang_consume_nowsp_string	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	field
	)

consume 1 string without any whitespace

Consume a YANG string token in any of the 3 forms Check No whitespace allowed!

Error messages are printed by this function!! Do not duplicate error messages upon error return

current token is advanced

Parameters

	tkc	token chain
	mod	module in progress
[out]	field	address of field to get the name string (may be NULL) *field is set with a malloced string in NO_ERR

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_ordered_by()

status_t yang_consume_ordered_by	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		boolean *	ordsys,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one ordered-by clause

Parse the ordered-by statement

Current token is the 'ordered-by' keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	ordsys	address of ordered-by object to set may be NUL *ordsys set to the value if ordsys not NULL
[out]	dupflag	address of flag to check if entry already found may be NULL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

◆ yang_consume_pid()

status_t yang_consume_pid	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	prefixstr,
		xmlChar **	str,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one [prefix:]name clause

Parse the rest of the statement (2 forms):

         keyword [prefix:]name;

         keyword [prefix:]name { appinfo }

Current token is the starting keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	prefixstr	address of prefix string to set (may be NULL) *prefixstr set to the prefix value is any, if str not NULL
[out]	str	address of string to set (may be NULL) *str set to the value if str not NULL
[out]	dupflag	address of flag to check if entry already found may be NULL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

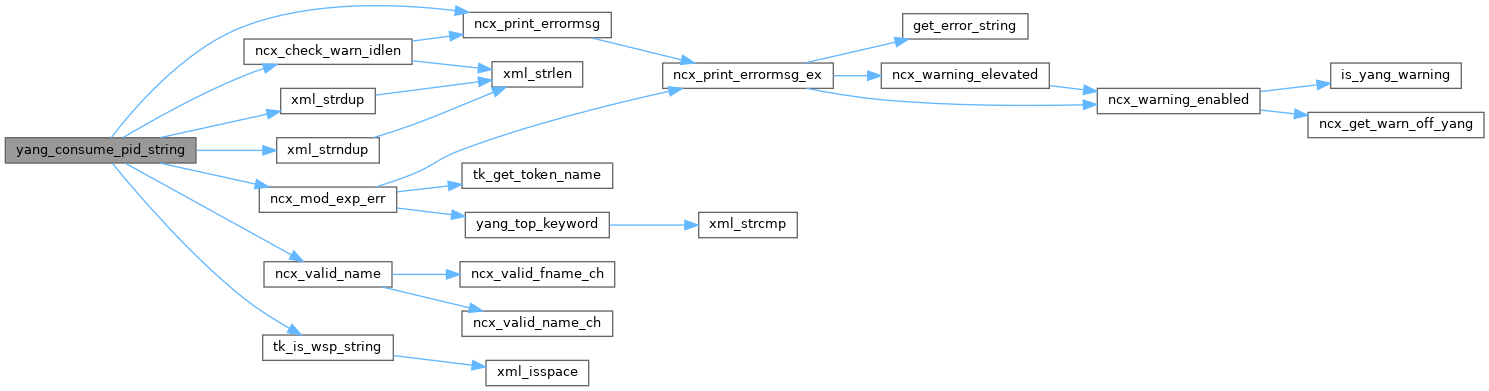

◆ yang_consume_pid_string()

status_t yang_consume_pid_string	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	prefix,
		xmlChar **	field
	)

consume an identifier-ref-str token

Consume a YANG string token in any of the 3 forms Check that it is a valid identifier-ref-string Get the prefix if any is set

Error messages are printed by this function!! Do not duplicate error messages upon error return

current token is advanced

Parameters

	tkc	token chain
	mod	module in progress
[out]	prefix	address of field to get the prefix string (may be NULL) *prefix is set with a malloced string in NO_ERR
[out]	field	address of field to get the name string (may be NULL) *field is set with a malloced string in NO_ERR

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_semiapp()

status_t yang_consume_semiapp	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ
	)

consume a stmtsep clause

Consume a semi-colon to end a simple clause, or consume a vendor extension

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	appinfoQ	queue to receive any vendor extension found *appinfoQ has the extesnion added if any current token is advanced

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_semiapp2()

status_t yang_consume_semiapp2	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		dlq_hdr_t *	appinfoQ,
		boolean	plain_ok
	)

consume a stmtsep clause, check plain_ok

Consume a semi-colon to end a simple clause, or consume a vendor extension

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	appinfoQ	queue to receive any vendor extension found *appinfoQ has the extesnion added if any current token is advanced
	plain_ok	TRUE if plain YANG OK; FALSE if only ext. stmts

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_status()

status_t yang_consume_status	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		ncx_status_t *	status,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one status clause

Parse the status statement

Current token is the 'status' keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	status	address of status object to set (may be NULL) *status set to the value if status not NULL
[out]	dupflag	address of flag to check if entry already found may be NULL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_strclause()

status_t yang_consume_strclause	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	str,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one normative string clause

Parse the string-parameter-based statement

Current token is the starting keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	str	address of string to set may be NULL *str set to the value if str not NULL
[out]	dupflag	address of flag to check if entry already found may be NULL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_string()

status_t yang_consume_string	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		xmlChar **	field
	)

consume 1 string token

Consume a YANG string token in any of the 3 forms

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	field	address of field to get the string (may be NULL) *field is set with a malloced string in NO_ERR current token is advanced

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_uint32()

status_t yang_consume_uint32	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		uint32 *	num,
		boolean *	dupflag,
		dlq_hdr_t *	appinfoQ
	)

consume one uint32 clause

Parse the uint32 based parameter statement

Current token is the starting keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	num	address of uint32 value to set (may be NULL) *num set if NO_ERR
[out]	dupflag	address of flag to check if entry already found may be NUL *dupflag set to TRUE if field already set
[out]	appinfoQ	Q to hold any extensions found *appinfoQ filled in with any extensions found

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_consume_when()

status_t yang_consume_when	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		obj_template_t *	obj,
		boolean *	whenflag
	)

consume one when-stmt into obj->when

Parse the when statement

Current token is the 'when' keyword

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	tkc	token chain
	mod	module in progress
[out]	obj	obj_template_t of the parent object of this 'when' obj->when malloced and filled in
[out]	whenflag	address of boolean set-once flag for the when-stmt an error will be generated if the value passed in is TRUE. Set the initial value to FALSE before first call, and do not change it after that *whenflag set if not set already

Returns: status of the operation

Here is the call graph for this function:

◆ yang_copy_filename()

status_t yang_copy_filename	(	const xmlChar *	modname,
		const xmlChar *	revision,
		xmlChar *	buffer,
		uint32	bufflen,
		boolean	isyang
	)

Construct a YANG filename into a provided buffer.

Parameters

modname	[sub]module name
revision	[sub]module revision date (may be NULL)
buffer	buffer to copy filename into
bufflen	number of bytes available in buffer
isyang	TRUE for YANG extension FALSE for YIN extension

Returns: malloced and filled in string buffer with filename
NULL if any error

Here is the call graph for this function:

◆ yang_dump_nodeQ()

void yang_dump_nodeQ	(	dlq_hdr_t *	que,
		const char *	name
	)

log_debug output for contents of the specified nodeQ

Parameters

que	Q of yang_node_t to check
name	Q name (may be NULL)

Here is the call graph for this function:

◆ yang_extract_filespec_info()

status_t yang_extract_filespec_info	(	const char *	filespec,
		xmlChar **	modname,
		xmlChar **	revision,
		boolean *	isyang
	)

Split a filespec into its filename components.

Parameters

	filespec	filespec string
[out]	modname	address of return malloced module name *modname malloced mod name string (must free with m__free)
[out]	revision	address of return malloced revision date *revision malloced revision date string (must free with m__free)
[out]	isyang	address of return yang/yin flag *isyang TRUE if .yang, FALSE if .yin

Returns: status

Here is the call graph for this function:

◆ yang_fileext_is_json()

boolean yang_fileext_is_json ( const xmlChar * filename )

Check if the filespec ends with the .json extension.

Parameters

filename filename string

Returns: TRUE if .json file extension found
FALSE if not

Here is the call graph for this function:

◆ yang_fileext_is_xml()

boolean yang_fileext_is_xml ( const xmlChar * filename )

Check if the filespec ends with the .xml extension.

Parameters

filename filename string

Returns: TRUE if .xml file extension found
FALSE if not

Here is the call graph for this function:

◆ yang_fileext_is_yang()

boolean yang_fileext_is_yang ( const xmlChar * filename )

Check if the filespec ends with the .yang extension.

Parameters

filename filename string

Returns: TRUE if .yang file extension found
FALSE if not

Here is the call graph for this function:

◆ yang_fileext_is_yin()

boolean yang_fileext_is_yin ( const xmlChar * filename )

Check if the filespec ends with the .yin extension.

Parameters

filename filename string

Returns: TRUE if .yin file extension found
FALSE if not

Here is the call graph for this function:

◆ yang_final_memcheck()

void yang_final_memcheck ( void )

Check the node malloc and free counts.

◆ yang_find_imp_extension()

status_t yang_find_imp_extension	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	prefix,
		const xmlChar *	name,
		ncx_error_t *	tkerr,
		ext_template_t **	ext
	)

Find the specified imported extension.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	pcb	parser control block to use
	tkc	token chain
	mod	module in progress
	prefix	prefix value to use
	name	extension name to use
	tkerr	error record to use in error messages (may be NULL)
[out]	ext	address of return ext_template_t pointer *ext set to the found ext_template_t, if NO_ERR

Returns: status of the operation

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_find_imp_feature()

status_t yang_find_imp_feature	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	prefix,
		const xmlChar *	name,
		ncx_error_t *	tkerr,
		ncx_feature_t **	feature
	)

Find the specified imported feature.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	pcb	parser control block to use
	tkc	token chain
	mod	module in progress
	prefix	prefix value to use
	name	feature name to use
	tkerr	error record to use in error messages (may be NULL)
[out]	feature	address of return ncx_feature_t pointer *feature set to the found ncx_feature_t, if NO_ERR

Returns: status of the operation

Here is the call graph for this function:

◆ yang_find_imp_grouping()

status_t yang_find_imp_grouping	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	prefix,
		const xmlChar *	name,
		ncx_error_t *	tkerr,
		grp_template_t **	grp
	)

Find the specified imported grouping.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	pcb	parser control block to use
	tkc	token chain
	mod	module in progress
	prefix	prefix value to use
	name	grouping name to use
	tkerr	error record to use in error messages (may be NULL)
[out]	grp	address of return grp_template_t pointer *grp set to the found grp_template_t, if NO_ERR

Returns: status of the operation

Here is the call graph for this function:

◆ yang_find_imp_identity()

status_t yang_find_imp_identity	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	prefix,
		const xmlChar *	name,
		ncx_error_t *	tkerr,
		ncx_identity_t **	identity
	)

Find the specified imported identity.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	pcb	parser control block to use
	tkc	token chain
	mod	module in progress
	prefix	prefix value to use
	name	feature name to use
	tkerr	error record to use in error messages (may be NULL)
[out]	identity	address of return ncx_identity_t pointer *identity set to the found ncx_identity_t, if NO_ERR

Returns: status of the operation

Here is the call graph for this function:

◆ yang_find_imp_typedef()

status_t yang_find_imp_typedef	(	yang_pcb_t *	pcb,
		tk_chain_t *	tkc,
		ncx_module_t *	mod,
		const xmlChar *	prefix,
		const xmlChar *	name,
		ncx_error_t *	tkerr,
		typ_template_t **	typ
	)

Find the specified imported typedef.

Error messages are printed by this function!! Do not duplicate error messages upon error return

Parameters

	pcb	parser control block to use
	tkc	token chain
	mod	module in progress
	prefix	prefix value to use
	name	type name to find
	tkerr	error record to use in error messages (may be NULL)
[out]	typ	address of return typ_template_t pointer *typ set to the found typ_template_t, if NO_ERR

Returns: status of the operation

Here is the call graph for this function:

◆ yang_find_import_ptr()

yang_import_ptr_t * yang_find_import_ptr	(	dlq_hdr_t *	que,
		const xmlChar *	name
	)

Find a YANG import pointer node in the specified Q.

Parameters

que	Q of yang_import_ptr_t to check
name	module name to find

Returns: pointer to found node, NULL if not found

Here is the call graph for this function:

◆ yang_find_node()

yang_node_t * yang_find_node	(	const dlq_hdr_t *	que,
		const xmlChar *	name,
		const xmlChar *	revision
	)

Find a YANG parser node in the specified Q.

Parameters

que	Q of yang_node_t to check
name	module name to find
revision	module revision date (may be NULL)

Returns: pointer to found node, NULL if not found

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_free_import_ptr()

void yang_free_import_ptr ( yang_import_ptr_t * impptr )

Delete a YANG import pointer node.

Parameters

impptr import pointer node to delete

Here is the caller graph for this function:

◆ yang_free_node()

void yang_free_node ( yang_node_t * node )

Clean and delete the memory for a YANG parser node.

Parameters

node	parser node to delete

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_free_pcb()

void yang_free_pcb ( yang_pcb_t * pcb )

Delete a YANG parser control block.

Parameters

pcb	parser control block to delete

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_free_stmt()

void yang_free_stmt ( yang_stmt_t * stmt )

Delete a YANG statement node.

Parameters

stmt	yang_stmt_t node to delete

Here is the caller graph for this function:

◆ yang_hash()

uint32 yang_hash	(	const xmlChar *	key,
		uint32	len
	)

Generate a yang-hash for the specified key.

Murmur3_32 hash function but only return low 30 bits The seed is fixed to be 42

Parameters

key	string to hash
len	length of key in bytes

Returns: hash value

Here is the caller graph for this function:

◆ yang_is_in_yangdata()

boolean yang_is_in_yangdata ( const yang_pcb_t * pcb )

Get the in_yangdata mode.

Parameters

pcb	parser control block to check

Returns: current yangdata mode

◆ yang_make_filename()

xmlChar * yang_make_filename	(	const xmlChar *	modname,
		const xmlChar *	revision,
		boolean	isyang
	)

Malloc and construct a YANG filename.

Parameters

modname	[sub]module name
revision	[sub]module revision date (may be NULL)
isyang	TRUE for YANG extension FALSE for YIN extension

Returns: malloced and filled in string buffer with filename
NULL if any error

Here is the call graph for this function:

◆ yang_make_sid_filename()

xmlChar * yang_make_sid_filename	(	const xmlChar *	modname,
		const xmlChar *	revision
	)

Malloc and construct a SID filename.

Parameters

modname	name
revision	(may be NULL)

Returns: malloced and filled in string buffer with filename
NULL if any error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_new_deviation_stmt()

yang_stmt_t * yang_new_deviation_stmt ( obj_deviation_t * deviation )

Create a new YANG stmt node for a deviation definition.

Parameters

deviation deviation template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

Here is the caller graph for this function:

◆ yang_new_ext_stmt()

yang_stmt_t * yang_new_ext_stmt ( ext_template_t * ext )

Create a new YANG stmt node for an extension.

Parameters

ext	extension template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

Here is the caller graph for this function:

◆ yang_new_feature_stmt()

yang_stmt_t * yang_new_feature_stmt ( ncx_feature_t * feature )

Create a new YANG stmt node for a feature definition.

Parameters

feature feature template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

Here is the caller graph for this function:

◆ yang_new_grp_stmt()

yang_stmt_t * yang_new_grp_stmt ( grp_template_t * grp )

Create a new YANG stmt node for a grouping.

Parameters

grp	grouping template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

Here is the caller graph for this function:

◆ yang_new_id_stmt()

yang_stmt_t * yang_new_id_stmt ( ncx_identity_t * identity )

Create a new YANG stmt node for an identity.

Parameters

identity identity template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

◆ yang_new_import_ptr()

yang_import_ptr_t * yang_new_import_ptr	(	const xmlChar *	modname,
		const xmlChar *	modprefix,
		const xmlChar *	revision,
		const xmlChar *	descr,
		const xmlChar *	ref
	)

Create a new YANG import pointer node.

Parameters

modname	module name to set
modprefix	module prefix to set
revision	revision date to set
descr	description string (YANG 1.1)
ref	reference string (YANG 1.1)

Returns: pointer to new and initialized struct, NULL if memory error

Here is the call graph for this function:

◆ yang_new_node()

yang_node_t * yang_new_node ( void )

Create a new YANG parser node.

Returns: pointer to new and initialized struct, NULL if memory error

◆ yang_new_obj_stmt()

yang_stmt_t * yang_new_obj_stmt ( obj_template_t * obj )

Create a new YANG stmt node for an object.

Parameters

obj	object template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

◆ yang_new_pcb()

yang_pcb_t * yang_new_pcb ( void )

Create a new YANG parser control block.

Returns: pointer to new and initialized struct, NULL if memory error

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_new_typ_stmt()

yang_stmt_t * yang_new_typ_stmt ( typ_template_t * typ )

Create a new YANG stmt node for a typedef.

Parameters

typ	type template to use for new statement struct

Returns: pointer to new and initialized struct, NULL if memory error

Here is the caller graph for this function:

◆ yang_set_in_yangdata()

void yang_set_in_yangdata	(	yang_pcb_t *	pcb,
		boolean	val
	)

Set the in_yangdata mode.

Parameters

pcb	parser control block to set
val	current mode to set

Here is the caller graph for this function:

◆ yang_skip_statement()

void yang_skip_statement	(	tk_chain_t *	tkc,
		ncx_module_t *	mod
	)

Skip past the current invalid statement, starting at an invalid keyword.

Parameters

tkc	token chain in progress
mod	module in progress

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_split_filename()

boolean yang_split_filename	(	const xmlChar *	filename,
		uint32 *	modnamelen
	)

Split a module parameter into its filename components.

Parameters

	filename	filename string
[out]	modnamelen	address of return modname length *modnamelen module name length

Returns: TRUE if "module@revision" form was found
FALSE if not, and ignore the output because a different form of the module parameter was used

Here is the call graph for this function:

◆ yang_top_keyword()

boolean yang_top_keyword ( const xmlChar * keyword )

Check if the string is a top-level YANG keyword.

Parameters

keyword string to check

Returns: TRUE if a top-level YANG keyword, FALSE otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yang_validate_date_string()

status_t yang_validate_date_string	(	tk_chain_t *	tkc,
		ncx_module_t *	mod,
		ncx_error_t *	tkerr,
		const xmlChar *	datestr
	)

Validate a YANG date string for a revision entry.

  Expected format is:

     YYYY-MM-DD

Error messages are printed by this function

Parameters

tkc	token chain in progress
mod	module in progress
tkerr	error struct to use (may be NULL to use tkc->cur)
datestr	string to validate

Returns: status

Here is the call graph for this function:

Data Structures

Enumerations

Functions

Detailed Description

Enumeration Type Documentation

◆ yang_parsetype_t

Function Documentation

◆ yang_check_imports_used()

◆ yang_check_obj_used()

◆ yang_clean_import_ptrQ()

◆ yang_clean_nodeQ()

◆ yang_clean_pcb_top()

◆ yang_clean_stmtQ()

◆ yang_compare_revision_dates()

◆ yang_consume_boolean()

◆ yang_consume_descr()

◆ yang_consume_error_stmts()

◆ yang_consume_id_string()

◆ yang_consume_int32()

◆ yang_consume_keyword()

◆ yang_consume_max_elements()

◆ yang_consume_modifier()

◆ yang_consume_must()

◆ yang_consume_nowsp_string()

◆ yang_consume_ordered_by()

◆ yang_consume_pid()

◆ yang_consume_pid_string()

◆ yang_consume_semiapp()

◆ yang_consume_semiapp2()

◆ yang_consume_status()

◆ yang_consume_strclause()

◆ yang_consume_string()

◆ yang_consume_uint32()

◆ yang_consume_when()

◆ yang_copy_filename()

◆ yang_dump_nodeQ()

◆ yang_extract_filespec_info()

◆ yang_fileext_is_json()

◆ yang_fileext_is_xml()

◆ yang_fileext_is_yang()

◆ yang_fileext_is_yin()

◆ yang_final_memcheck()

◆ yang_find_imp_extension()

◆ yang_find_imp_feature()

◆ yang_find_imp_grouping()

◆ yang_find_imp_identity()

◆ yang_find_imp_typedef()

◆ yang_find_import_ptr()

◆ yang_find_node()

◆ yang_free_import_ptr()

◆ yang_free_node()

◆ yang_free_pcb()

◆ yang_free_stmt()

◆ yang_hash()

◆ yang_is_in_yangdata()

◆ yang_make_filename()

◆ yang_make_sid_filename()

◆ yang_new_deviation_stmt()

◆ yang_new_ext_stmt()

◆ yang_new_feature_stmt()

◆ yang_new_grp_stmt()

◆ yang_new_id_stmt()

◆ yang_new_import_ptr()

◆ yang_new_node()

◆ yang_new_obj_stmt()

◆ yang_new_pcb()

◆ yang_new_typ_stmt()

◆ yang_set_in_yangdata()

◆ yang_skip_statement()

◆ yang_split_filename()

◆ yang_top_keyword()

◆ yang_validate_date_string()
