YANG SID File

Support YANG to CBOR SID File. More...

Collaboration diagram for YANG SID File:

Functions
status_t	sid_file_init (void)
	Initialize the SID FIle Parser Module. More...
void	sid_file_cleanup (void)
	Cleanup the SID FIle Parser Module. More...
val_value_t *	sid_file_load (ncx_module_t *mod, status_t *res)
	Load the SID file for the specified YANG module. More...
val_value_t *	sid_file_load_update (ncx_module_t *mod, const xmlChar *parmstr, boolean is_date, status_t *res)
	Load the SID file for the specified YANG module. More...
status_t	sid_file_apply (uint32 sid_tree_id, val_value_t *sidfile, ncx_module_t *mod, boolean internal, boolean update_mode)
	Apply the SID file contents to specified YANG module. More...
obj_template_t *	sid_file_get_obj (void)
	Get the OBJ template for the SID file. More...
status_t	sid_file_get_ranges (val_value_t *sidfile, dlq_hdr_t *sid_rangeQ, uint32 *total)
	Get the assignment ranges from the SID file val_value_t. More...
status_t	sid_file_add_range (ncx_sid_t range_start, uint32 range_size, dlq_hdr_t *sid_rangeQ)
	Add a specified range struct to the end of the sid_rangeQ. More...
status_t	sid_file_check_ranges (ncx_sid_t sid, dlq_hdr_t *sid_rangeQ, boolean set_highest, ncx_sid_range_t **ret_range)
	Check if a SID value is in range. More...
status_t	sid_file_verify_ranges (dlq_hdr_t *sid_rangeQ)
	Verify that all the SID ranges are separate and do not overlap. More...

Detailed Description

Support YANG to CBOR SID File.

Implement obj_template_t schema to val_value conversion of SID files.

Function Documentation

sid_file_add_range()

status_t sid_file_add_range	(	ncx_sid_t	range_start,
		uint32	range_size,
		dlq_hdr_t *	sid_rangeQ
	)

Add a specified range struct to the end of the sid_rangeQ.

An ncx_sid_range_t struct will be created and added to the rangeQ

Parameters

	range_start	SID number to start the range
	range_size	number of SID numbers in range
[out]	sid_rangeQ	initialized Q for receiving the ncx_sid_range_t structs

Returns

status

• need to clean entries from sid_rangeQ even if error returned

Here is the call graph for this function:

sid_file_apply()

status_t sid_file_apply	(	uint32	sid_tree_id,
		val_value_t *	sidfile,
		ncx_module_t *	mod,
		boolean	internal,
		boolean	update_mode
	)

Apply the SID file contents to specified YANG module.

For augments, the expanded nodes in the augmented tree will be updated. The sid_dict registry will be updated for each schema item.

Parameters

	sid_tree_id	YANG SID Tree ID to use (from sid_dict)
	sidfile	value tree representing a SID file to apply. value treated as const.
[out]	mod	module to load SID file for mod data structures and maybe other modules for augment will get SID assignments
	internal	TRUE if this is an internal module FALSE if OK to export SIDs
	update_mode	TRUE for yangdum –sid-update-file mode FALSE for all other modes (netconfd and yangcli)

Returns

status

Here is the call graph for this function:

sid_file_check_ranges()

status_t sid_file_check_ranges	(	ncx_sid_t	sid,
		dlq_hdr_t *	sid_rangeQ,
		boolean	set_highest,
		ncx_sid_range_t **	ret_range
	)

Check if a SID value is in range.

A Queue of ncx_sid_range_t structs will be checked

Parameters

	sid	SID number to check
	sid_rangeQ	Q of ncx_sid_range_t to check
	set_highest	TRUE to set sid_range_used if sid is highest in range
[out]	ret_range	return pointer to found range may be NULL to ignore

Returns

status

• NO_ERR if sid is in range
  • *ret_range set if non-NULL
• ERR_NCX_MISSING_PARM if sid=0 or sid_rangeQ is NULL
• ERR_NCX_NOT_IN_RANGE if no range that could fit

sid_file_cleanup()

void sid_file_cleanup

(

void

)

Cleanup the SID FIle Parser Module.

Here is the caller graph for this function:

sid_file_get_obj()

obj_template_t * sid_file_get_obj

(

void

)

Get the OBJ template for the SID file.

Returns

pointer to the SID file object; NULL if init sequence error

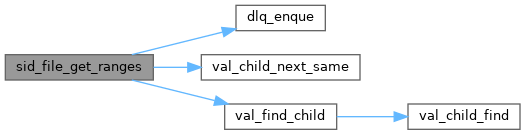

sid_file_get_ranges()

status_t sid_file_get_ranges	(	val_value_t *	sidfile,
		dlq_hdr_t *	sid_rangeQ,
		uint32 *	total
	)

Get the assignment ranges from the SID file val_value_t.

An ncx_sid_range_t struct will be created and added to the rangeQ

Parameters

	sidfile	SID file as a val_value_t tree
[out]	sid_rangeQ	initialized Q for receiving the ncx_sid_range_t structs
[out]	total	if non-NULL set to number of SIDs in all ranges found

Returns

status

• need to clean entries from sid_rangeQ even if error returned

Here is the call graph for this function:

sid_file_init()

status_t sid_file_init

(

void

)

Initialize the SID FIle Parser Module.

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

sid_file_load()

val_value_t * sid_file_load	(	ncx_module_t *	mod,
		status_t *	res
	)

• Load the SID file for the specified YANG module.

Just creates a val_value_t representing the JSON contents Does not apply the SIDs to the module

Parameters

	mod	module to load SID file for
[out]	res	address of return status *res return status

Returns

malloced val_value_t representing the SID file. Must be freed with val_free_value.

sid_file_load_update()

val_value_t * sid_file_load_update	(	ncx_module_t *	mod,
		const xmlChar *	parmstr,
		boolean	is_date,
		status_t *	res
	)

• Load the SID file for the specified YANG module.

Just creates a val_value_t representing the JSON contents Does not apply the SIDs to the module

Parameters

	mod	module to load SID file for
	parmstr	–sid-update-file parameter string
	is_date	TRUE if parmstr is a date string FALSE if parmstr is a filespec
[out]	res	address of return status *res return status

Returns

malloced val_value_t representing the SID file. Must be freed with val_free_value.

sid_file_verify_ranges()

status_t sid_file_verify_ranges

(

dlq_hdr_t *

sid_rangeQ

)

Verify that all the SID ranges are separate and do not overlap.

Generate log_error messages if problems found

Parameters

sid_rangeQ

Q of ncx_sid_range_t to check

Returns

status

• NO_ERR if all ranges OK or less than 2 ranges
• ERR_NCX_MISSING_PARM if sid_rangeQ is NULL
• ERR_NCX_INVALID_VALUE if range overlap found
