YANG-API and DB-API Support

YANG-API and DB-API message support. More...

Collaboration diagram for YANG-API and DB-API Support:

Functions
status_t	agt_yangapi_init (void)
	Initialize the agt_yangapi module. More...
void	agt_yangapi_cleanup (void)
	Cleanup the agt_yangapi module. More...
boolean	agt_yangapi_dispatch (ses_cb_t *scb)
	Dispatch an incoming Yuma REST API request. More...
boolean	agt_yangapi_dispatch_db_api (ses_cb_t *scb, yang_patch_cb_t *pcb, boolean skip_sil, boolean skip_save, const xmlChar *comment_str, status_t *res)
	Dispatch an incoming YControl DB-API request. More...
status_t	agt_yangapi_validate_method_params (ses_cb_t *scb, yangapi_cb_t *rcb, rpc_msg_t *msg)
	validate that the operation is supported for the URI parameters given. More...
agt_yangapi_context_t *	agt_yangapi_get_context (void)
	Get the YANG-API Context structure. More...
status_t	agt_yangapi_edit_request (ses_cb_t *scb, yangapi_cb_t *rcb, rpc_msg_t *msg)
	Perform an internal <edit-config> and <commit> if needed. More...
status_t	agt_yangapi_edit_request_ex (ses_cb_t *scb, yangapi_cb_t *rcb, rpc_msg_t *msg, val_value_t *force_editval, op_editop_t force_editop, boolean skip_sil, boolean skip_save, const xmlChar *comment_str, yang_patch_cb_t *pcb, yang_patch_edit_t *edit)
	Perform an internal <edit-config> and <commit> if needed. More...
status_t	agt_yangapi_edit_request_ex2 (ses_cb_t *scb, yangapi_cb_t *rcb, rpc_msg_t *msg, val_value_t *force_editval, op_editop_t force_editop, boolean skip_sil, boolean skip_save, boolean check_candidate, boolean candidate_start_dirty, const xmlChar *comment_str, yang_patch_cb_t *pcb, yang_patch_edit_t *edit)
	Handle an edit request from DB-API (extra 2) More...

Detailed Description

YANG-API and DB-API message support.

Dispatch an DB-API request. Old YANG-API protocol support.

Function Documentation

agt_yangapi_cleanup()

void agt_yangapi_cleanup

(

void

)

Cleanup the agt_yangapi module.

Called by the server during shutdown.

agt_yangapi_dispatch()

boolean agt_yangapi_dispatch

(

ses_cb_t *

scb

)

Dispatch an incoming Yuma REST API request.

Parameters

scb	session control block

Returns

TRUE if scb is still valid
FALSE if scb has been deleted during this call

Here is the call graph for this function:

Here is the caller graph for this function:

agt_yangapi_dispatch_db_api()

boolean agt_yangapi_dispatch_db_api	(	ses_cb_t *	scb,
		yang_patch_cb_t *	pcb,
		boolean	skip_sil,
		boolean	skip_save,
		const xmlChar *	comment_str,
		status_t *	res
	)

Dispatch an incoming YControl DB-API request.

Parameters

	scb	session control block
	pcb	YANG Patch control block to use
	skip_sil	TRUE is SIL and SIL-SA callbacks should be skipped This is a DB-API edit and the system instrumentation has been updated externally. This call is just to update the server data structures FALSE this is a normal edit and SIL, SIL-SA should be called
	skip_save	TRUE if save-to-NV-storage should be skipped FALSE for normal NV-save procedure
	comment_str	optional comment for the augit log record
[out]	res	address of return status; *res return status

Returns

TRUE if scb is still valid
FALSE if scb has been deleted during this call

Here is the call graph for this function:

Here is the caller graph for this function:

agt_yangapi_edit_request()

status_t agt_yangapi_edit_request	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

Perform an internal <edit-config> and <commit> if needed.

Also write result to NV-storage if separate :startup config

Parameters

scb	session to use
rcb	yangapi control block to use
msg	response message in progress

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

agt_yangapi_edit_request_ex()

status_t agt_yangapi_edit_request_ex	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg,
		val_value_t *	force_editval,
		op_editop_t	force_editop,
		boolean	skip_sil,
		boolean	skip_save,
		const xmlChar *	comment_str,
		yang_patch_cb_t *	pcb,
		yang_patch_edit_t *	edit
	)

Perform an internal <edit-config> and <commit> if needed.

Extended.

Also write result to NV-storage if separate :startup config

Parameters

scb	session to use
rcb	yangapi control block to use
msg	response message in progress
force_editval	edit value to use instead of msg input
force_editop	forced edit op to use instead of PATCH=merge
skip_sil	TRUE to skip SIL and SIL-SA callbacks
skip_save	TRUE to skip NV-save
comment_str	optional comment string for this edit request
pcb	Patch control block in progress
edit	YANG Patch edit control block

Returns

status

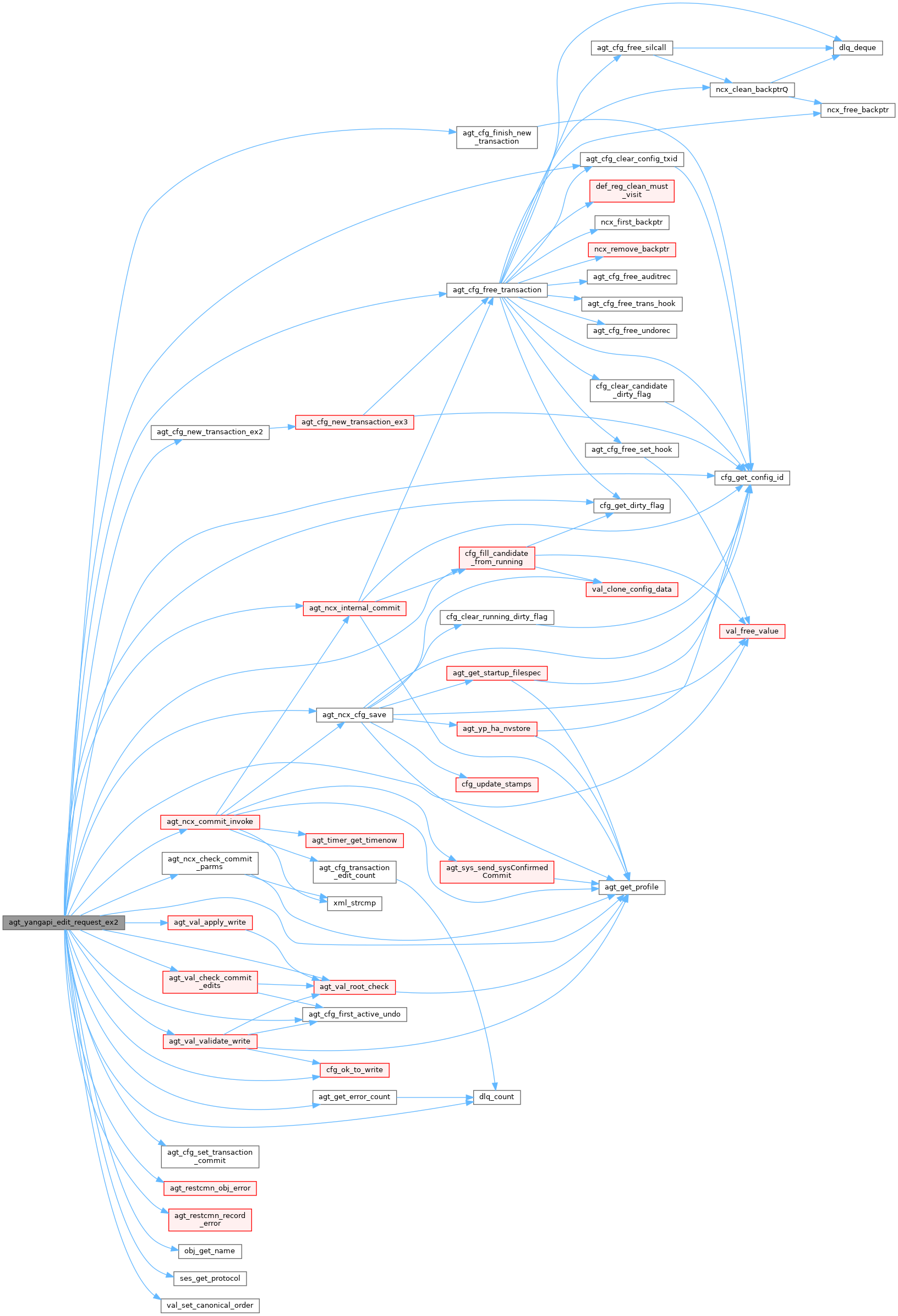

Here is the call graph for this function:

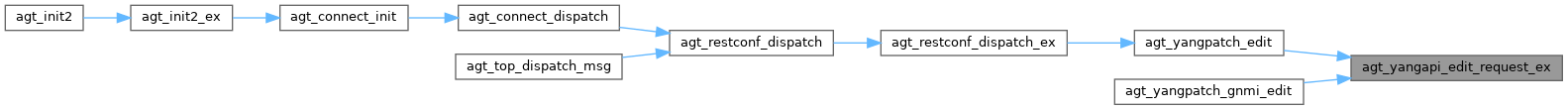

Here is the caller graph for this function:

agt_yangapi_edit_request_ex2()

status_t agt_yangapi_edit_request_ex2	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg,
		val_value_t *	force_editval,
		op_editop_t	force_editop,
		boolean	skip_sil,
		boolean	skip_save,
		boolean	check_candidate,
		boolean	candidate_start_dirty,
		const xmlChar *	comment_str,
		yang_patch_cb_t *	pcb,
		yang_patch_edit_t *	edit
	)

Handle an edit request from DB-API (extra 2)

Perform an internal <edit-config> and <commit> if needed Also write result to NV-storage if separate :startup config

Parameters

scb	session to use
rcb	yangapi control block to use
msg	response message in progress
force_editval	edit value to use instead of msg input
force_editop	forced edit op to use instead of PATCH=merge
skip_sil	TRUE to skip SIL and SIL-SA callbacks
skip_save	== TRUE to skip NV-store of config
check_candidate	== TRUE to check candidate dirty for partial skip SIL
candidate_start_dirty	only used if check_candicate i FALSE
comment_str	optional comment string for this edit request
pcb	Patch control block in progress
edit	Patch edit to add to datastore

Returns

status

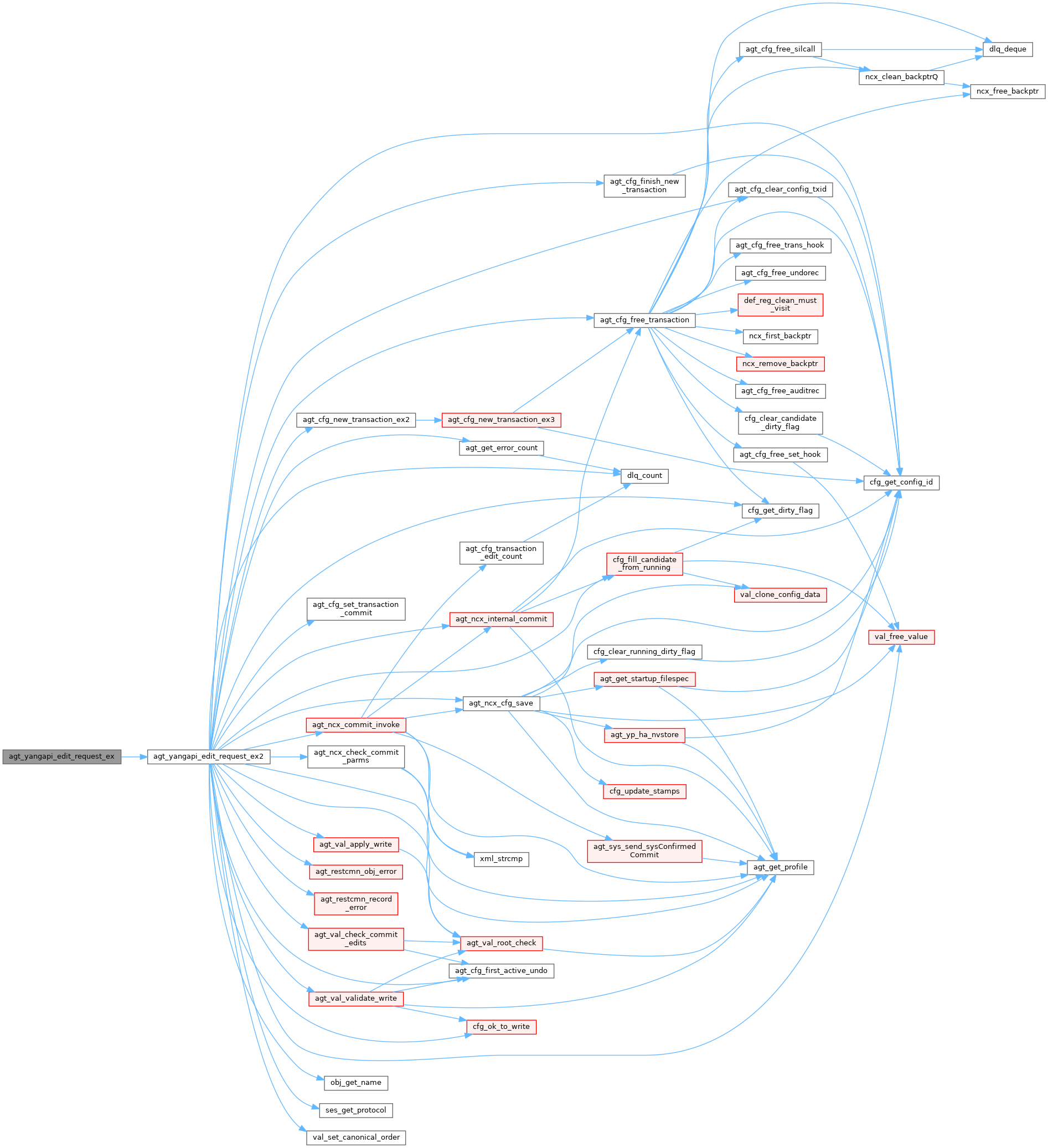

Here is the call graph for this function:

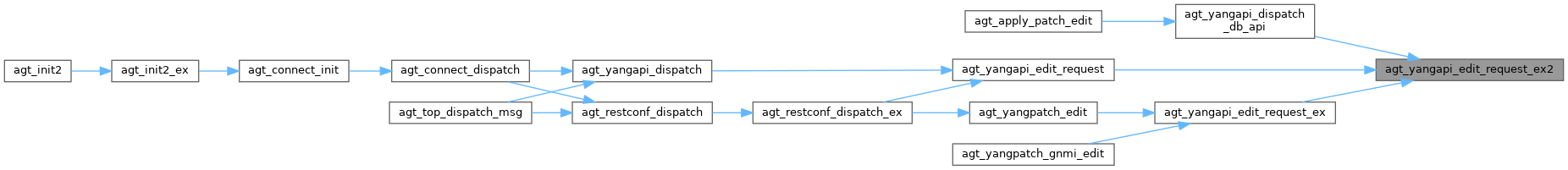

Here is the caller graph for this function:

agt_yangapi_get_context()

agt_yangapi_context_t * agt_yangapi_get_context

(

void

)

Get the YANG-API Context structure.

Returns

YANG-API namespace ID

Here is the caller graph for this function:

agt_yangapi_init()

status_t agt_yangapi_init

(

void

)

Initialize the agt_yangapi module.

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:

agt_yangapi_validate_method_params()

status_t agt_yangapi_validate_method_params	(	ses_cb_t *	scb,
		yangapi_cb_t *	rcb,
		rpc_msg_t *	msg
	)

validate that the operation is supported for the URI parameters given.

Errors are recorded by this function. Do not call record_error again if error returned

Parameters

scb	session control block to use
rcb	restapi control block to use
msg	msg to use for storing error records

Returns

status

Here is the call graph for this function:

Here is the caller graph for this function:
