Static module defined variables maintained in ncx.c There are access APIs for each parameter. More...

Collaboration diagram for Global Variables:

Functions

ncx_display_mode_t ncx_get_display_mode (void)
 Get the current default display mode. More...

uint32 ncx_get_vtimeout_value (void)
 Get the virtual node cache timeout value. More...

boolean ncx_get_useprefix (void)
 Get the use_prefix value. More...

void ncx_set_useprefix (boolean val)
 Set the use_prefix value. More...

boolean ncx_get_system_sorted (void)
 Get the system_sorted value. More...

void ncx_set_system_sorted (boolean val)
 Set the system_sorted value. More...

boolean ncx_get_cwd_subdirs (void)
 Get the CLI parameter value whether to search for modules in subdirs of the CWD by default. More...

boolean ncx_protocol_enabled (ncx_protocol_t proto)
 Check if the specified protocol version is enabled. More...

void ncx_set_protocol_enabled (ncx_protocol_t proto)
 Set the specified protocol version to be enabled. More...

void ncx_set_protocol_disabled (ncx_protocol_t proto)
 Set the specified protocol version to be disabled. More...

void ncx_set_use_deadmodQ (void)
 Set the usedeadmodQ flag. More...

int8 ncx_get_message_indent (void)
 Get the protoco9l output indent amount. More...

void ncx_set_message_indent (int8 msg_indent)
 Set the protocol output message indent amount. More...

boolean ncx_use_xpath_backptrs (void)
 Check if it is OK to use XPath back pointers or not. More...

status_t ncx_set_all_obj_xpath_backptrs (void)
 Add Xpath back pointers to the data-db objects in the database. More...

boolean ncx_fastpath_enabled (void)
 Check if fast path value tree comparisons enabled. More...

boolean ncx_netconfd_running (void)
 Check if netconfd running. More...

void ncx_use_data_templates (boolean enabled)
 Set the use-data-templates flag. More...

boolean ncx_data_templates_ok (void)
 Get the use-data-templates flag. More...

void ncx_ignore_missing_vars (boolean enabled)
 Set the ignore-missing-vars flag. More...

boolean ncx_missing_vars_ok (void)
 Get the ignore-missing-vars flag. More...

void ncx_set_ycontrol_running (void)
 Set the ycontrol_running flag to TRUE.

void ncx_set_search_modQ_ok (void)
 Set the search_modQ_ok flag to TRUE.

boolean ncx_get_search_modQ_ok (void)
 Get the search_modQ_ok flag. More...

status_t ncx_set_subsys_id (const xmlChar *id)
 Set the subsys_id parameter for this subsystem. More...

const xmlChar * ncx_get_subsys_id (void)
 Get the subsys_id value; NULL if not set. More...

void ncx_set_use_objptrs (void)
 Set the use_objptrs flag. More...

boolean ncx_use_objptrs (void)
 Get the use_objptrs flag. More...

ncx_backptr_tncx_first_objptr (void)
 Get the first object pointer. More...

ncx_backptr_tncx_next_objptr (ncx_backptr_t *curptr)
 Get the next object pointer. More...

void ncx_set_getbulk_max (uint32 max_entries)
 Set the max_entries parameter for GET2 callbacks. More...

uint32 ncx_get_getbulk_max (void)
 Get the max_entries parameter for GET2 callbacks. More...

void ncx_set_sil_priority_used (void)
 Flag that an object set a non-default SIL priority. More...

boolean ncx_get_sil_priority_used (void)
 Get the sil_priority_used flag. More...

void ncx_set_secondary_sil_priority_used (void)
 Flag that a value node set a non-default secondary SIL priority. More...

boolean ncx_get_secondary_sil_priority_used (void)
 Get the secondary_sil_priority_used flag. More...

boolean ncx_base_schema_set (void)
 Check if the base schema features have been set yet. More...

void ncx_set_base_schema (void)
 Set the base_schema_set flag to true. More...

boolean ncx_need_get2_xpath (void)
 Check if GET2 callback support needed in XPath. More...

void ncx_set_with_ocpattern (boolean mode)
 Set the openconfig pattern mode for the entire system. More...

boolean ncx_is_add_toplevel_default_mode (void)
 Get the add_toplevel_default_mode value. More...

void ncx_set_add_toplevel_default_mode (boolean val)
 Set the add_toplevel_default_mode value. More...

boolean ncx_is_with_snmp (void)
 Get the with_snmp value. More...

void ncx_set_with_snmp (boolean val)
 Set the with_snmp value. More...

void ncx_enable_bestmatch (void)
 Enable the bestmatch import processing feature. More...

status_t ncx_set_bestmatch (void)
 Setup the bestmatch module versions, if enabled. More...

void ncx_allow_get_when_check (void)
 Allow server get retrievals to test for false when-stmt during retrieval operations on YANG data.

boolean ncx_use_get_when_check (void)
 Check server get retrievals to test for false when-stmt during retrieval operations on YANG data. More...

boolean ncx_get_sethook_registered (void)
 Check if the Set-Hook callbacks were registered. More...

void ncx_set_sethook_registered (boolean val)
 Set the sethook_registered value. More...

void ncx_set_binary_display_maxlen (uint32 val)
 Set the binary_display_maxlen parameter. More...

uint32 ncx_get_binary_display_maxlen (void)
 Get the binary_display_maxlen parameter. More...

boolean ncx_is_with_dblock (void)
 Get the is_with_dblock value. More...

void ncx_set_with_dblock (boolean val)
 Set the is_with_dblock value. More...

boolean ncx_is_db_lock_init_done (void)
 Check if the <db-lock-init> message was processed by the server. More...

void ncx_set_db_lock_init_done (boolean val)
 Set if the <db-lock-init> message was processed by the server. More...

void ncx_set_max_strlen (int32 num)
 Set the –max-strlen parameter. More...

int32 ncx_get_max_strlen (void)
 Get the –max-strlen parameter. More...

void ncx_set_ypwatcher_running (void)
 Set the ypwatcher running flag. More...

boolean ncx_get_ypwatcher_running (void)
 Get the ypwatcher running flag. More...

void ncx_set_pidfile_cleaned (void)
 Set the pidfile cleaned flag. More...

boolean ncx_get_pidfile_cleaned (void)
 Get the PID file cleaned flag. More...

void ncx_set_trim_whitespace (boolean val)
 Set the trim_whitespace flag. More...

boolean ncx_get_trim_whitespace (void)
 Get the trim_whitespace flag. More...

void ncx_set_startup_prune (boolean val)
 Set the startup_prune flag. More...

boolean ncx_get_startup_prune (void)
 Get the startup_prune flag. More...

boolean ncx_check_startup_prune (ses_cb_t *scb)
 Check if the namespace error can be skipped. More...

void ncx_set_config_state (ncx_config_state_t val)
 Set the config_state flag. More...

ncx_config_state_t ncx_get_config_state (void)
 Get the config_state flag. More...

void ncx_set_xmlorder (boolean val)
 Set the xmlorder flag. More...

boolean ncx_get_xmlorder (void)
 Get the xmlorder flag. More...

void ncx_set_list_deleteall_ok (boolean val)
 Set the list_deleteall_ok flag. More...

boolean ncx_get_list_deleteall_ok (void)
 Get the list_deleteall_ok flag. More...

void ncx_set_leaflist_deleteall_ok (boolean val)
 Set the leaflist_deleteall_ok flag. More...

boolean ncx_get_leaflist_deleteall_ok (void)
 Get the leaflist_deleteall_ok flag. More...

boolean ncx_check_delete_all_allowed (obj_template_t *testobj)
 Check if the delete-all or remove-all operation is enabled for for specified object. More...

void ncx_set_with_canonical (boolean val)
 Set the with_canonical flag. More...

boolean ncx_get_with_canonical (void)
 Get the with_canonical flag. More...

void ncx_set_save_owners (boolean val)
 Set the save_owners flag. More...

boolean ncx_get_save_owners (void)
 Get the save_owners flag. More...


Detailed Description

Static module defined variables maintained in ncx.c There are access APIs for each parameter.

Often some server and yangcli-pro parameters need to be configured so YANG and XPath functions in the NCX library can operate correctly.

Function Documentation

boolean ncx_base_schema_set ( void  )

Check if the base schema features have been set yet.

Used by YANG compiler only

Returns
TRUE if base schema set; FALSE otherwise

Here is the caller graph for this function:

boolean ncx_check_delete_all_allowed ( obj_template_t testobj)

Check if the delete-all or remove-all operation is enabled for for specified object.

Parameters
testobjobject to check
Returns
TRUE if delete-all OK; FALSE if not OK

Here is the call graph for this function:

boolean ncx_check_startup_prune ( ses_cb_t scb)

Check if the namespace error can be skipped.

Will not generate rpc-error if this test is true

Parameters
scbsession control block
Returns
TRUE if nserr is OK to skip record_error; FALSE if not OK to skip record_error

Here is the call graph for this function:

Here is the caller graph for this function:

boolean ncx_data_templates_ok ( void  )

Get the use-data-templates flag.

Returns
TRUE if enabled, FALSE if not
TRUE if enabled, FALSE if not

Here is the caller graph for this function:

void ncx_enable_bestmatch ( void  )

Enable the bestmatch import processing feature.

Set the allow_bestmatch flag

boolean ncx_fastpath_enabled ( void  )

Check if fast path value tree comparisons enabled.

Returns
TRUE if enabled; FALSE if not
ncx_backptr_t* ncx_first_objptr ( void  )

Get the first object pointer.

Returns
back-pointer to the struct

Here is the call graph for this function:

Here is the caller graph for this function:

uint32 ncx_get_binary_display_maxlen ( void  )

Get the binary_display_maxlen parameter.

Returns
binary display maxlen

Here is the caller graph for this function:

ncx_config_state_t ncx_get_config_state ( void  )

Get the config_state flag.

Returns
ncx_config_state_t ENUM

Here is the caller graph for this function:

boolean ncx_get_cwd_subdirs ( void  )

Get the CLI parameter value whether to search for modules in subdirs of the CWD by default.

Does not affect YUMA_MODPATH or other hard-wired searches

Returns
TRUE if ncxmod should search for modules in subdirs of the CWD; FALSE if ncxmod should not search for modules in subdirs of the CWD

Here is the caller graph for this function:

ncx_display_mode_t ncx_get_display_mode ( void  )

Get the current default display mode.

Returns
the current dispay mode enumeration

Here is the caller graph for this function:

uint32 ncx_get_getbulk_max ( void  )

Get the max_entries parameter for GET2 callbacks.

0 = no max

Returns
max number of getbulk entries to allow

Here is the caller graph for this function:

boolean ncx_get_leaflist_deleteall_ok ( void  )

Get the leaflist_deleteall_ok flag.

Returns
val TRUE to allow the YumaWorks nc:operation=delete-all value for YANG leaf-lists
See also
ncx_set_leaflist_deleteall_ok

Here is the caller graph for this function:

boolean ncx_get_list_deleteall_ok ( void  )

Get the list_deleteall_ok flag.

Returns
val TRUE to allow the YumaWorks nc:operation=delete-all value for YANG lists
See also
ncx_set_list_deleteall_ok

Here is the caller graph for this function:

int32 ncx_get_max_strlen ( void  )

Get the –max-strlen parameter.

Returns
max-strlen number

Here is the caller graph for this function:

int8 ncx_get_message_indent ( void  )

Get the protoco9l output indent amount.

This is the indent level for text-based protocol messages. It is usually set to -1 for production use and 1 for debugging.

Returns
-1 .. 9 : message-indent parameter value
See also
ncx_set_message_indent

Here is the caller graph for this function:

boolean ncx_get_pidfile_cleaned ( void  )

Get the PID file cleaned flag.

Returns
pidfile_cleaned flag
boolean ncx_get_save_owners ( void  )

Get the save_owners flag.

Returns
TRUE if YANG Configuration owner IDs should be saved
See also
ncx_set_save_owners
boolean ncx_get_search_modQ_ok ( void  )

Get the search_modQ_ok flag.

Returns
TRUE if search_modQ_ok flag is set; FALSE if not

Here is the caller graph for this function:

boolean ncx_get_secondary_sil_priority_used ( void  )

Get the secondary_sil_priority_used flag.

Returns
TRUE if any value nodes set secondary SIL priority to non-default value. Can be set only by Set Order Hook
boolean ncx_get_sethook_registered ( void  )

Check if the Set-Hook callbacks were registered.

Returns
TRUE if there are Set-Hook callbacks; FALSE otherwise

Here is the caller graph for this function:

boolean ncx_get_sil_priority_used ( void  )

Get the sil_priority_used flag.

Returns
TRUE if any objects set SIL priority to non-default value
boolean ncx_get_startup_prune ( void  )

Get the startup_prune flag.

Server –startup-prune-ok CLI parm

Returns
TRUE if OK to prune unknown data from the startup config; FALSE to stop parsing with an error

Here is the caller graph for this function:

const xmlChar* ncx_get_subsys_id ( void  )

Get the subsys_id value; NULL if not set.

Returns
subsys-id string value for this subsystem

Here is the caller graph for this function:

boolean ncx_get_system_sorted ( void  )

Get the system_sorted value.

Returns
TRUE if system ordered objects should be sorted; FALSE if system ordered objects should not be sorted
See also
ncx_set_system_sorted
boolean ncx_get_trim_whitespace ( void  )

Get the trim_whitespace flag.

Returns
TRUE to trim whitespace; FALSE to not trim whitespace
See also
ncx_set_trim_whitespace

Here is the caller graph for this function:

boolean ncx_get_useprefix ( void  )

Get the use_prefix value.

Returns
TRUE if XML prefixes should be used; FALSE if XML messages should use default namespace (no prefix)
See also
ncx_set_useprefix

Here is the caller graph for this function:

uint32 ncx_get_vtimeout_value ( void  )

Get the virtual node cache timeout value.

Returns
number of seconds for the cache timeout; 0 == disabled
boolean ncx_get_with_canonical ( void  )

Get the with_canonical flag.

Returns
TRUE if YANG canonical automation should be enabled
See also
ncx_set_with_canonical

Here is the caller graph for this function:

boolean ncx_get_xmlorder ( void  )

Get the xmlorder flag.

Returns
TRUE to enforce strict XML order; FAALSE to allow misordered XML
See also
ncx_set_xmlorder
boolean ncx_get_ypwatcher_running ( void  )

Get the ypwatcher running flag.

Returns
ypwatcher_running

Here is the caller graph for this function:

void ncx_ignore_missing_vars ( boolean  enabled)

Set the ignore-missing-vars flag.

Parameters
enabledTRUE if OK to ignore missing vars, FALSE if not
boolean ncx_is_add_toplevel_default_mode ( void  )

Get the add_toplevel_default_mode value.

Returns
TRUE if adding Top level defaults during the agt_init phase
boolean ncx_is_db_lock_init_done ( void  )

Check if the <db-lock-init> message was processed by the server.

Returns
TRUE if <db-lock-init> was already processed and can now LOAD configuration config

Here is the caller graph for this function:

boolean ncx_is_with_dblock ( void  )

Get the is_with_dblock value.

Returns
TRUE if with-db-lock=true; FALSE otherwise

Here is the caller graph for this function:

boolean ncx_is_with_snmp ( void  )

Get the with_snmp value.

Used by the server only

Returns
TRUE if with-snmp=true

Here is the caller graph for this function:

boolean ncx_missing_vars_ok ( void  )

Get the ignore-missing-vars flag.

Returns
TRUE if missing vars replaced with empty string, FALSE if error
TRUE if missing vars replaced with empty string, FALSE if error

Here is the caller graph for this function:

boolean ncx_need_get2_xpath ( void  )

Check if GET2 callback support needed in XPath.

Only the server uses this feature at this time

Returns
TRUE if GET2 callbacks should be checked; FALSE if GET2 callbacks are not being used
boolean ncx_netconfd_running ( void  )

Check if netconfd running.

Returns
TRUE if running; FALSE if not

Here is the caller graph for this function:

ncx_backptr_t* ncx_next_objptr ( ncx_backptr_t curptr)

Get the next object pointer.

Parameters
curptrcurent object pointer
Returns
back-pointer to the next objptr struct

Here is the call graph for this function:

boolean ncx_protocol_enabled ( ncx_protocol_t  proto)

Check if the specified protocol version is enabled.

Returns
TRUE if protocol enabled; FALSE if protocol not enabled or error
See also
ncx_set_protocol_enabled

Here is the caller graph for this function:

void ncx_set_add_toplevel_default_mode ( boolean  val)

Set the add_toplevel_default_mode value.

Parameters
valTRUE if adding Top level defaults during the agt_init phase

Here is the caller graph for this function:

status_t ncx_set_all_obj_xpath_backptrs ( void  )

Add Xpath back pointers to the data-db objects in the database.

Returns
status
See also
ncx_set_obj_xpath_backptrs

Here is the call graph for this function:

Here is the caller graph for this function:

void ncx_set_base_schema ( void  )

Set the base_schema_set flag to true.

Used by YANG compiler only

Here is the caller graph for this function:

status_t ncx_set_bestmatch ( void  )

Setup the bestmatch module versions, if enabled.

This is an action and will cause the module search path to be examined for all revisions of all modules found

Returns
status

Here is the call graph for this function:

void ncx_set_binary_display_maxlen ( uint32  val)

Set the binary_display_maxlen parameter.

Parameters
valnumber to set as max binary display length

Here is the caller graph for this function:

void ncx_set_config_state ( ncx_config_state_t  val)

Set the config_state flag.

Controls if the datastores can be accessed

Parameters
valconfig state enum value to set
void ncx_set_db_lock_init_done ( boolean  val)

Set if the <db-lock-init> message was processed by the server.

Parameters
valTRUE if <db-lock-init> was already processed by the server
void ncx_set_getbulk_max ( uint32  max_entries)

Set the max_entries parameter for GET2 callbacks.

0 == no max

Parameters
max_entriesmax number of getbulk entries to allow

Here is the caller graph for this function:

void ncx_set_leaflist_deleteall_ok ( boolean  val)

Set the leaflist_deleteall_ok flag.

Parameters
valTRUE to allow the YumaWorks nc:operation=delete-all value for YANG leaf-lists
See also
ncx_get_leaflist_deleteall_ok

Here is the caller graph for this function:

void ncx_set_list_deleteall_ok ( boolean  val)

Set the list_deleteall_ok flag.

Parameters
valTRUE to allow the YumaWorks nc:operation=delete-all value for YANG lists
See also
ncx_get_list_deleteall_ok

Here is the caller graph for this function:

void ncx_set_max_strlen ( int32  num)

Set the –max-strlen parameter.

Parameters
nummax-strlen number to use; if out of range it will be changed
void ncx_set_message_indent ( int8  msg_indent)

Set the protocol output message indent amount.

Parameters
msg_indent-1 .. 9 : message-indent parameter value
See also
ncx_get_message_indent

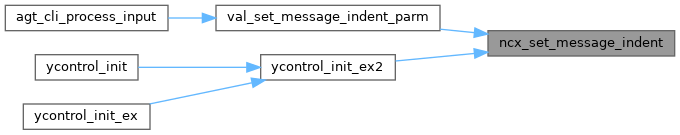

Here is the caller graph for this function:

void ncx_set_pidfile_cleaned ( void  )

Set the pidfile cleaned flag.

Here is the caller graph for this function:

void ncx_set_protocol_disabled ( ncx_protocol_t  proto)

Set the specified protocol version to be disabled.

Parameters
protoprotocol version to enable

Here is the caller graph for this function:

void ncx_set_protocol_enabled ( ncx_protocol_t  proto)

Set the specified protocol version to be enabled.

Parameters
protoprotocol version to enable
See also
ncx_protocol_enabled

Here is the caller graph for this function:

void ncx_set_save_owners ( boolean  val)

Set the save_owners flag.

This will cause owner IDs to be maintained for the configuration data in the server

Parameters
valTRUE if YANG Configuration owner IDs should be saved
See also
ncx_get_save_owners

Here is the caller graph for this function:

void ncx_set_secondary_sil_priority_used ( void  )

Flag that a value node set a non-default secondary SIL priority.

Set secondary_sil_priority_used to TRUE, meaning that secondary SIL priority was set to non-default value. Can be set only by Set Order Hook callback. the direct call to val_set_sil_priority() will not affect this flag, and will not affect the secondary SIL priority

Here is the caller graph for this function:

void ncx_set_sethook_registered ( boolean  val)

Set the sethook_registered value.

Parameters
valTRUE if there are Set-Hook callbacks; FALSE if there is NO

Here is the caller graph for this function:

void ncx_set_sil_priority_used ( void  )

Flag that an object set a non-default SIL priority.

Used by server only to optimize SIL callback processing

Here is the caller graph for this function:

void ncx_set_startup_prune ( boolean  val)

Set the startup_prune flag.

Server –startup-prune-ok CLI parm

Parameters
valTRUE if OK to prune unknown data from the startup config; FALSE to stop parsing with an error

Here is the caller graph for this function:

status_t ncx_set_subsys_id ( const xmlChar *  id)

Set the subsys_id parameter for this subsystem.

Parameters
idsubsys-id to use
Returns
status

Here is the call graph for this function:

void ncx_set_system_sorted ( boolean  val)

Set the system_sorted value.

Parameters
valTRUE if system ordered objects should be sorted; FALSE if system ordered objects should not be sorted
See also
ncx_get_system_sorted

Here is the caller graph for this function:

void ncx_set_trim_whitespace ( boolean  val)

Set the trim_whitespace flag.

Setting this to true will violate the XML standard that says all chanracters in an XML string node are significant

Parameters
valTRUE to trim whitespace; FALSE to not trim whitespace
See also
ncx_get_trim_whitespace

Here is the caller graph for this function:

void ncx_set_use_deadmodQ ( void  )

Set the usedeadmodQ flag.

This is needed by the server and other tools to prevent corner-cases where deviations still point at the removed module. Prevents corrupted memory in case the deviation is accessed

void ncx_set_use_objptrs ( void  )

Set the use_objptrs flag.

void ncx_set_useprefix ( boolean  val)

Set the use_prefix value.

Parameters
valTRUE if XML prefixes should be used; FALSE if XML messages should use default namespace (no prefix)
See also
ncx_get_useprefix
void ncx_set_with_canonical ( boolean  val)

Set the with_canonical flag.

Parameters
valTRUE if YANG canonical automation should be enabled
See also
ncx_get_with_canonical

Here is the caller graph for this function:

void ncx_set_with_dblock ( boolean  val)

Set the is_with_dblock value.

Parameters
valTRUE if with-db-lock=true

Here is the caller graph for this function:

void ncx_set_with_ocpattern ( boolean  mode)

Set the openconfig pattern mode for the entire system.

Parameters
modeT: for openconfig mode [POSIX] F: IETF mode [XSD] This should get set before any openconfig modules are loaded

Here is the caller graph for this function:

void ncx_set_with_snmp ( boolean  val)

Set the with_snmp value.

Used by the server only

Parameters
valTRUE if with-snmp=true

Here is the caller graph for this function:

void ncx_set_xmlorder ( boolean  val)

Set the xmlorder flag.

Server –use-xmlorder CLI paramter

Parameters
valTRUE to enforce strict XML order; FAALSE to allow misordered XML
See also
ncx_get_xmlorder

Here is the caller graph for this function:

void ncx_set_ypwatcher_running ( void  )

Set the ypwatcher running flag.

void ncx_use_data_templates ( boolean  enabled)

Set the use-data-templates flag.

Parameters
enabledTRUE if enabled, FALSE if not
boolean ncx_use_get_when_check ( void  )

Check server get retrievals to test for false when-stmt during retrieval operations on YANG data.

Returns
TRUE if when-stmt checks should be used on GET requests

Here is the caller graph for this function:

boolean ncx_use_objptrs ( void  )

Get the use_objptrs flag.

These are used to hold the queue of top-level data nodes

Returns
use_objptrs flag

Here is the caller graph for this function:

boolean ncx_use_xpath_backptrs ( void  )

Check if it is OK to use XPath back pointers or not.

Returns
TRUE if OK; FALSE if not
See also
ncx_set_obj_xpath_backptrs

Here is the caller graph for this function:
