Definition Registry

Provides fast tiered lookup for data structures used to process NCX messages. More...

Collaboration diagram for Definition Registry:

Functions
void	def_reg_init (void)
	Initialize the def_reg module. More...
void	def_reg_cleanup (void)
	Cleanup all the malloced memory in this module and return the module to an uninitialized state. More...
status_t	def_reg_add_ns (xmlns_t *ns)
	add one xmlns_t to the registry More...
xmlns_t *	def_reg_find_ns (const xmlChar *nsname)
	find one xmlns_t in the registry find a xmlns_t by its value (name) More...
void	def_reg_del_ns (const xmlChar *nsname)
	unregister a xmlns_t delete one ncx_module from the registry More...
status_t	def_reg_add_scb (int fd, ses_cb_t *scb)
	add one FD to SCB mapping to the registry More...
ses_cb_t *	def_reg_find_scb (int fd)
	find one FD-to-SCB mapping in the registry More...
void	def_reg_del_scb (int fd)
	delete one FD to SCB mapping from the registry More...
status_t	def_reg_add_modcache (ncx_modcache_t *mc)
	add one module info cache to the registry More...
ncx_modcache_t *	def_reg_find_modcache (const xmlChar *modname)
	find one modcache_t in the registry More...
void	def_reg_del_modcache (const xmlChar *modname)
	unregister a modcache_t delete one module cache record from the registry More...
status_t	def_reg_add_must_visit (xpath_pcb_t *must, val_value_t *curval)
	add one MUST visit to the registry. More...
boolean	def_reg_find_must_visit (xpath_pcb_t *must, val_value_t *curval)
	find one must visit find a vist by curval value and must PCB expression value More...
void	def_reg_clean_must_visit (void)
	unregister all must visits entries delete all from the registry More...

Detailed Description

Provides fast tiered lookup for data structures used to process NCX messages.

The data structures 'pointed to' by these registry entries are not managed in this module. Deleting a registry entry will not delete the 'pointed to' data structure.

   Entry types

   NS:
     Namespace to Module Lookup
     Key: namespace URI
     Data: module name and back pointer

   FD:
     File Desscriptor ID to Session Control Block Ptr
     Key: File Descriptor Index
     Data: Session Ptr attached to that FD

Function Documentation

def_reg_add_modcache()

status_t def_reg_add_modcache

(

ncx_modcache_t *

mc

)

add one module info cache to the registry

Parameters

mc	module cache record to add

Returns

status

Here is the caller graph for this function:

def_reg_add_must_visit()

status_t def_reg_add_must_visit	(	xpath_pcb_t *	must,
		val_value_t *	curval
	)

add one MUST visit to the registry.

Based on current MUST statement expression, curval name

Parameters

must	XPath MUST stmt control block
curval	value for the must-stmt

Returns

status of the operation

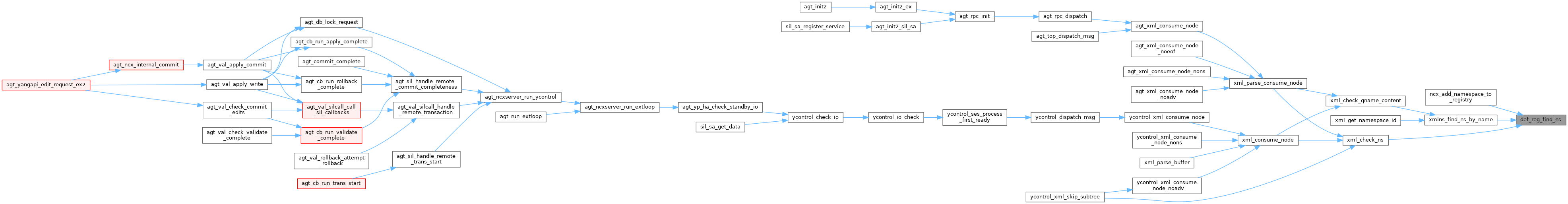

Here is the call graph for this function:

def_reg_add_ns()

status_t def_reg_add_ns

(

xmlns_t *

ns

)

add one xmlns_t to the registry

Parameters

ns	namespace record to add

Returns

status of the operation

def_reg_add_scb()

status_t def_reg_add_scb	(	int	fd,
		ses_cb_t *	scb
	)

add one FD to SCB mapping to the registry

Parameters

fd	file descriptor to add
scb	ses_cb_t for the session

Returns

status of the operation

def_reg_clean_must_visit()

void def_reg_clean_must_visit

(

void

)

unregister all must visits entries delete all from the registry

Here is the call graph for this function:

Here is the caller graph for this function:

def_reg_cleanup()

void def_reg_cleanup

(

void

)

Cleanup all the malloced memory in this module and return the module to an uninitialized state.

After this fn, the def_reg_init fn could be called again

Here is the call graph for this function:

Here is the caller graph for this function:

def_reg_del_modcache()

void def_reg_del_modcache

(

const xmlChar *

modname

)

unregister a modcache_t delete one module cache record from the registry

Parameters

modname

module name to delete

Here is the call graph for this function:

def_reg_del_ns()

void def_reg_del_ns

(

const xmlChar *

nsname

)

unregister a xmlns_t delete one ncx_module from the registry

Parameters

nsname

namespace name to delete

Here is the call graph for this function:

Here is the caller graph for this function:

def_reg_del_scb()

void def_reg_del_scb

(

int

fd

)

delete one FD to SCB mapping from the registry

Parameters

fd	file descriptor index to delete

Here is the call graph for this function:

Here is the caller graph for this function:

def_reg_find_modcache()

ncx_modcache_t * def_reg_find_modcache

(

const xmlChar *

modname

)

find one modcache_t in the registry

Parameters

modname

module name to find

Returns

pointer to modcachet or NULL if not found

Here is the caller graph for this function:

def_reg_find_must_visit()

boolean def_reg_find_must_visit	(	xpath_pcb_t *	must,
		val_value_t *	curval
	)

find one must visit find a vist by curval value and must PCB expression value

Parameters

must	XPath MUST stmt control block
curval	current value to use

Returns

TRUE if value found; FALSE otherwise

Here is the call graph for this function:

def_reg_find_ns()

xmlns_t * def_reg_find_ns

(

const xmlChar *

nsname

)

find one xmlns_t in the registry find a xmlns_t by its value (name)

Parameters

nsname

namespace ID to find (by URI)

Returns

pointer to xmlns_t or NULL if not found

Here is the caller graph for this function:

def_reg_find_scb()

ses_cb_t * def_reg_find_scb

(

int

fd

)

find one FD-to-SCB mapping in the registry

Parameters

fd	file descriptor ID to find

Returns

pointer to ses_cb_t or NULL if not found

Here is the caller graph for this function:

def_reg_init()

void def_reg_init

(

void

)

Initialize the def_reg module.

Here is the call graph for this function:

Here is the caller graph for this function:
